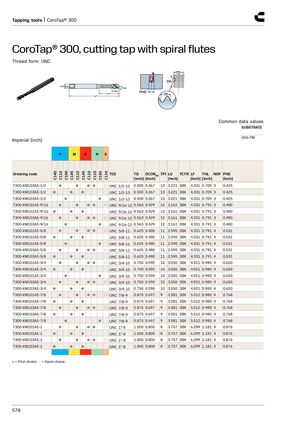

Инструмент для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик со спиральными канавками
Форма резьбы: UNC
Общие справочные значения
Материал: HSS-PM
Дюймовая система (inch)
| Код заказа | P (C145) | P (C110) | M (C150) | M (C145) | M (C110) | K (C145) | K (C110) | N (C110) | S (C150) | S (C110) | Резьба | TDZ [inch] | TD [inch] | DCONMS | TPI | LU [inch] | TCTR | LF [inch] | THL [inch] | NOF | PHD [inch] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-XM103AE-1/2 | ● | ● | ●● | ○ | UNC 1/2-13 | 0.500 | 0.367 | 13 | 3.221 | 3BX | 4.331 | 0.709 | 3 | 0.425 | |||||||
| T300-XM103AE-1/2 | ● | ● | ● | UNC 1/2-13 | 0.500 | 0.367 | 13 | 3.221 | 3BX | 4.331 | 0.709 | 3 | 0.425 | ||||||||
| T300-XM103AE-1/2 | ● | ● | UNC 1/2-13 | 0.500 | 0.367 | 13 | 3.221 | 3BX | 4.331 | 0.709 | 3 | 0.425 | |||||||||
| T300-XM101AE-9/16 | ● | ● | ●● | ○ | UNC 9/16-12 | 0.563 | 0.429 | 12 | 3.161 | 3BX | 4.331 | 0.791 | 3 | 0.480 | |||||||
| T300-XM101AE-9/16 | ● | ● | ● | UNC 9/16-12 | 0.563 | 0.429 | 12 | 3.161 | 3BX | 4.331 | 0.791 | 3 | 0.480 | ||||||||
| T300-XM103AE-9/16 | ● | ● | ●● | ○ | UNC 9/16-12 | 0.563 | 0.429 | 12 | 3.161 | 3BX | 4.331 | 0.791 | 3 | 0.480 | |||||||
| T300-XM103AE-9/16 | ● | ● | UNC 9/16-12 | 0.563 | 0.429 | 12 | 3.161 | 3BX | 4.331 | 0.791 | 3 | 0.480 | |||||||||
| T300-XM101AE-5/8 | ● | ● | ●● | ○ | UNC 5/8-11 | 0.625 | 0.480 | 11 | 2.590 | 3BX | 4.331 | 0.791 | 4 | 0.531 | |||||||
| T300-XM101AE-5/8 | ● | ● | ● | UNC 5/8-11 | 0.625 | 0.480 | 11 | 2.590 | 3BX | 4.331 | 0.791 | 4 | 0.531 | ||||||||
| T300-XM101AE-5/8 | ● | ● | UNC 5/8-11 | 0.625 | 0.480 | 11 | 2.590 | 3BX | 4.331 | 0.791 | 4 | 0.531 | |||||||||
| T300-XM103AE-5/8 | ● | ● | ●● | ○ | UNC 5/8-11 | 0.625 | 0.480 | 11 | 2.590 | 3BX | 4.331 | 0.791 | 4 | 0.531 | |||||||
| T300-XM103AE-5/8 | ● | ● | ● | UNC 5/8-11 | 0.625 | 0.480 | 11 | 2.590 | 3BX | 4.331 | 0.791 | 4 | 0.531 | ||||||||
| T300-XM101AE-3/4 | ● | ● | ●● | ○ | UNC 3/4-10 | 0.750 | 0.590 | 10 | 3.050 | 3BX | 4.921 | 0.980 | 4 | 0.650 | |||||||
| T300-XM101AE-3/4 | ● | ● | ● | UNC 3/4-10 | 0.750 | 0.590 | 10 | 3.050 | 3BX | 4.921 | 0.980 | 4 | 0.650 | ||||||||
| T300-XM101AE-3/4 | ● | ● | UNC 3/4-10 | 0.750 | 0.590 | 10 | 3.050 | 3BX | 4.921 | 0.980 | 4 | 0.650 | |||||||||
| T300-XM103AE-3/4 | ● | ● | ●● | ○ | UNC 3/4-10 | 0.750 | 0.590 | 10 | 3.050 | 3BX | 4.921 | 0.980 | 4 | 0.650 | |||||||
| T300-XM103AE-3/4 | ● | ● | ● | UNC 3/4-10 | 0.750 | 0.590 | 10 | 3.050 | 3BX | 4.921 | 0.980 | 4 | 0.650 | ||||||||
| T300-XM101AE-7/8 | ● | ● | ●● | ○ | UNC 7/8-9 | 0.875 | 0.697 | 9 | 3.581 | 3BX | 5.512 | 0.980 | 4 | 0.768 | |||||||
| T300-XM101AE-7/8 | ● | ● | ● | UNC 7/8-9 | 0.875 | 0.697 | 9 | 3.581 | 3BX | 5.512 | 0.980 | 4 | 0.768 | ||||||||
| T300-XM103AE-7/8 | ● | ● | ●● | ○ | UNC 7/8-9 | 0.875 | 0.697 | 9 | 3.581 | 3BX | 5.512 | 0.980 | 4 | 0.768 | |||||||
| T300-XM103AE-7/8 | ● | ● | ● | UNC 7/8-9 | 0.875 | 0.697 | 9 | 3.581 | 3BX | 5.512 | 0.980 | 4 | 0.768 | ||||||||
| T300-XM103AE-7/8 | ● | ● | UNC 7/8-9 | 0.875 | 0.697 | 9 | 3.581 | 3BX | 5.512 | 0.980 | 4 | 0.768 | |||||||||
| T300-XM101AE-1 | ● | ● | ●● | ○ | UNC 1"-8 | 1.000 | 0.800 | 8 | 3.757 | 3BX | 6.299 | 1.181 | 4 | 0.876 | |||||||
| T300-XM101AE-1 | ● | ● | ● | UNC 1"-8 | 1.000 | 0.800 | 8 | 3.757 | 3BX | 6.299 | 1.181 | 4 | 0.876 | ||||||||
| T300-XM103AE-1 | ● | ● | ●● | ○ | UNC 1"-8 | 1.000 | 0.800 | 8 | 3.757 | 3BX | 6.299 | 1.181 | 4 | 0.876 | |||||||
| T300-XM103AE-1 | ● | ● | ● | UNC 1"-8 | 1.000 | 0.800 | 8 | 3.757 | 3BX | 6.299 | 1.181 | 4 | 0.876 |
● = Первый выбор ○ = Хороший выбор
