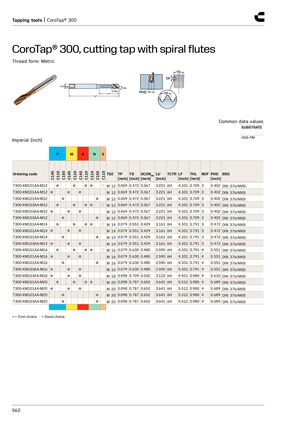

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: Метрическая
Общие данные: Материал HSS-PM, размеры в дюймах (inch)
Столбцы P, M, K, N, S с индексами (C145, C110, C150) обозначают варианты исполнения хвостовика/заборной части инструмента, отмеченные символами ●/○ в исходной таблице для каждого кода заказа.
| Код заказа | Резьба | TP [inch] | TD [inch] | DCONMS [inch] | LU [inch] | TCTR | LF [inch] | THL [inch] | NOF | PHD [inch] | Стандарт |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-XM101AA-M12 | M 12 | 0.069 | 0.472 | 0.367 | 3.221 | 6H | 4.331 | 0.709 | 3 | 0.402 | DIN 376/ANSI |
| T300-XM103AA-M12 | M 12 | 0.069 | 0.472 | 0.367 | 3.221 | 6H | 4.331 | 0.709 | 3 | 0.402 | DIN 376/ANSI |
| T300-XM101AA-M14 | M 14 | 0.079 | 0.551 | 0.429 | 3.161 | 6H | 4.331 | 0.791 | 3 | 0.472 | DIN 376/ANSI |
| T300-XM103AA-M14 | M 14 | 0.079 | 0.551 | 0.429 | 3.161 | 6H | 4.331 | 0.791 | 3 | 0.472 | DIN 376/ANSI |
| T300-XM101AA-M16 | M 16 | 0.079 | 0.630 | 0.480 | 2.590 | 6H | 4.331 | 0.791 | 4 | 0.551 | DIN 376/ANSI |
| T300-XM103AA-M16 | M 16 | 0.079 | 0.630 | 0.480 | 2.590 | 6H | 4.331 | 0.791 | 4 | 0.551 | DIN 376/ANSI |
| T300-XM103AA-M18 | M 18 | 0.098 | 0.709 | 0.542 | 3.110 | 6H | 4.921 | 0.980 | 4 | 0.610 | DIN 376/ANSI |
| T300-XM101AA-M20 | M 20 | 0.098 | 0.787 | 0.652 | 3.641 | 6H | 5.512 | 0.980 | 4 | 0.689 | DIN 376/ANSI |
| T300-XM103AA-M20 | M 20 | 0.098 | 0.787 | 0.652 | 3.641 | 6H | 5.512 | 0.980 | 4 | 0.689 | DIN 376/ANSI |
● = Первый выбор, ○ = Хороший выбор
