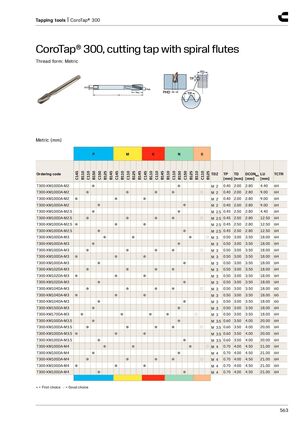

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: Метрическая
Столбцы P, M, K, N, S с индексами (B110, B150, B125, B145, C145, C110, C150) обозначают варианты исполнения хвостовика/заборной части инструмента, отмеченные символами ●/○ в исходной таблице для каждого кода заказа.
| Код заказа | Резьба | TP | TD [mm] | DCONMS [mm] | LU [mm] | TCTR |
|---|---|---|---|---|---|---|
| T300-XM100DA-M2 | M 2 | 0.40 | 2.00 | 2.80 | 4.40 | 6H |
| T300-XM100DA-M2 | M 2 | 0.40 | 2.00 | 2.80 | 9.00 | 6H |
| T300-XM100DA-M2.5 | M 2.5 | 0.45 | 2.50 | 2.80 | 4.40 | 6H |
| T300-XM100DA-M2.5 | M 2.5 | 0.45 | 2.50 | 2.80 | 12.50 | 6H |
| T300-XM100DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6H |
| T300-XM102DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6H |
| T300-XM104DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6G |
| T300-XM150DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6H |
| T300-XM170DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6H |
| T300-XM100DA-M3.5 | M 3.5 | 0.60 | 3.50 | 4.00 | 20.00 | 6H |
| T300-XM100DA-M4 | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6H |
● = Первый выбор, ○ = Хороший выбор
