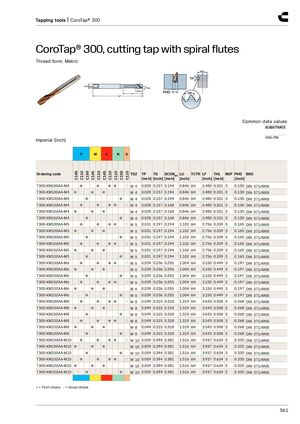

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: Метрическая
Общие данные: Материал HSS-PM, размеры в дюймах (inch)
Столбцы P, M, K, N, S с индексами (C145, C110, C150) обозначают варианты исполнения хвостовика/заборной части инструмента, отмеченные символами ●/○ в исходной таблице для каждого кода заказа.
| Код заказа | Резьба | TP [inch] | TD [inch] | DCONMS [inch] | LU [inch] | TCTR | LF [inch] | THL [inch] | NOF | PHD [inch] | Стандарт |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-XM100AA-M4 | M 4 | 0.028 | 0.157 | 0.194 | 0.846 | 6H | 2.480 | 0.331 | 3 | 0.130 | DIN 371/ANSI |
| T300-XM102AA-M4 | M 4 | 0.028 | 0.157 | 0.168 | 0.846 | 6H | 2.480 | 0.331 | 3 | 0.130 | DIN 371/ANSI |
| T300-XM100AA-M5 | M 5 | 0.031 | 0.197 | 0.194 | 1.102 | 6H | 2.756 | 0.339 | 3 | 0.165 | DIN 371/ANSI |
| T300-XM102AA-M5 | M 5 | 0.031 | 0.197 | 0.194 | 1.102 | 6H | 2.756 | 0.339 | 3 | 0.165 | DIN 371/ANSI |
| T300-XM100AA-M6 | M 6 | 0.039 | 0.236 | 0.255 | 1.004 | 6H | 3.150 | 0.449 | 3 | 0.197 | DIN 371/ANSI |
| T300-XM102AA-M6 | M 6 | 0.039 | 0.236 | 0.255 | 1.004 | 6H | 3.150 | 0.449 | 3 | 0.197 | DIN 371/ANSI |
| T300-XM100AA-M8 | M 8 | 0.049 | 0.315 | 0.318 | 1.319 | 6H | 3.543 | 0.508 | 3 | 0.268 | DIN 371/ANSI |
| T300-XM102AA-M8 | M 8 | 0.049 | 0.315 | 0.318 | 1.319 | 6H | 3.543 | 0.508 | 3 | 0.268 | DIN 371/ANSI |
| T300-XM100AA-M10 | M 10 | 0.059 | 0.394 | 0.381 | 1.516 | 6H | 3.937 | 0.634 | 3 | 0.335 | DIN 371/ANSI |
| T300-XM102AA-M10 | M 10 | 0.059 | 0.394 | 0.381 | 1.516 | 6H | 3.937 | 0.634 | 3 | 0.335 | DIN 371/ANSI |
● = Первый выбор, ○ = Хороший выбор
