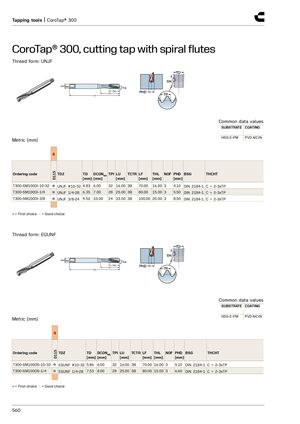

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: UNJF
Общие данные: Материал HSS-E-PM, покрытие PVD AlCrN
| Код заказа | Резьба | TDZ | TD | DCONMS | TPI | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SM100DI-10-32 | UNJF #10-32 | 4.83 | 6.00 | 32 | 16.00 | 3B | 70.00 | 16.00 | 3 | 4.10 | DIN 2184-1 | C = 2-3xTP | |
| T300-SM100DI-1/4 | UNJF 1/4-28 | 6.35 | 7.00 | 28 | 25.00 | 3B | 80.00 | 15.00 | 3 | 5.50 | DIN 2184-1 | C = 2-3xTP | |
| T300-SM100DI-3/8 | UNJF 3/8-24 | 9.52 | 10.00 | 24 | 33.50 | 3B | 100.00 | 20.00 | 3 | 8.50 | DIN 2184-1 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
Форма резьбы: EGUNF
Общие данные: Материал HSS-E-PM, покрытие PVD AlCrN
| Код заказа | Резьба | TDZ | TD | DCONMS | TPI | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SM100DS-10-32 | EGUNF #10-32 | 5.86 | 6.00 | 32 | 16.00 | 3B | 70.00 | 16.00 | 3 | 5.10 | DIN 2184-1 | C = 2-3xTP | |
| T300-SM100DS-1/4 | EGUNF 1/4-28 | 7.53 | 8.00 | 28 | 25.00 | 3B | 80.00 | 15.00 | 3 | 6.60 | DIN 2184-1 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
