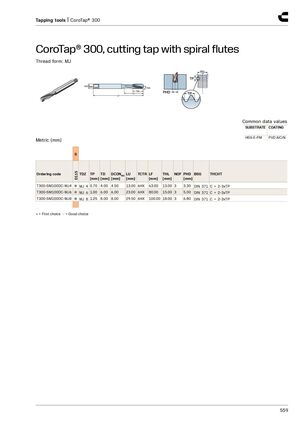

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: MJ
Общие данные: Материал HSS-E-PM, покрытие PVD AlCrN
| Код заказа | Резьба | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SM100DC-MJ4 | MJ 4 | 0.70 | 4.00 | 4.50 | 13.00 | 6HX | 63.00 | 13.00 | 3 | 3.30 | DIN 371 | C = 2-3xTP |
| T300-SM100DC-MJ6 | MJ 6 | 1.00 | 6.00 | 6.00 | 23.00 | 6HX | 80.00 | 15.00 | 3 | 5.00 | DIN 371 | C = 2-3xTP |
| T300-SM100DC-MJ8 | MJ 8 | 1.25 | 8.00 | 8.00 | 29.50 | 6HX | 100.00 | 18.00 | 3 | 6.80 | DIN 371 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
