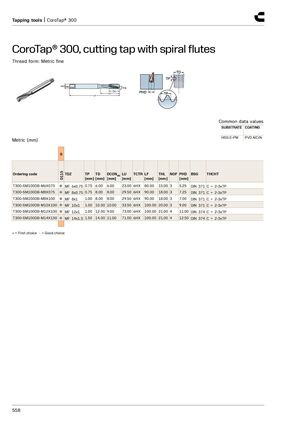

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: Метрическая мелкая
Общие данные: Материал HSS-E-PM, покрытие PVD AlCrN
| Код заказа | Резьба | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SM100DB-M6X075 | MF 6x0.75 | 0.75 | 6.00 | 6.00 | 23.00 | 6HX | 80.00 | 15.00 | 3 | 5.25 | DIN 371 | C = 2-3xTP |
| T300-SM100DB-M8X075 | MF 8x0.75 | 0.75 | 8.00 | 8.00 | 29.50 | 6HX | 90.00 | 18.00 | 3 | 7.25 | DIN 371 | C = 2-3xTP |
| T300-SM100DB-M8X100 | MF 8x1 | 1.00 | 8.00 | 8.00 | 29.50 | 6HX | 90.00 | 18.00 | 3 | 7.00 | DIN 371 | C = 2-3xTP |
| T300-SM100DB-M10X100 | MF 10x1 | 1.00 | 10.00 | 10.00 | 33.50 | 6HX | 100.00 | 20.00 | 3 | 9.00 | DIN 371 | C = 2-3xTP |
| T300-SM100DB-M12X100 | MF 12x1 | 1.00 | 12.00 | 9.00 | 73.00 | 6HX | 100.00 | 21.00 | 4 | 11.00 | DIN 374 | C = 2-3xTP |
| T300-SM100DB-M14X150 | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 71.00 | 6HX | 100.00 | 21.00 | 4 | 12.50 | DIN 374 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
