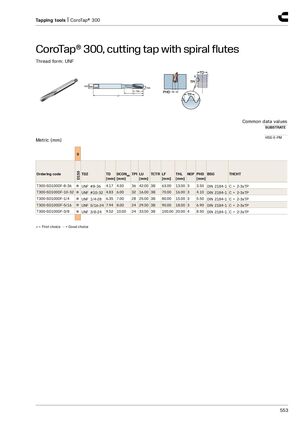

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: UNF
Общие данные: Материал HSS-E-PM
| Код заказа | Резьба | TDZ | TD | DCONMS | TPI | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SD100DF-8-36 | UNF #8-36 | 4.17 | 4.50 | 36 | 42.00 | 3B | 63.00 | 13.00 | 3 | 3.50 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DF-10-32 | UNF #10-32 | 4.83 | 6.00 | 32 | 16.00 | 3B | 70.00 | 16.00 | 3 | 4.10 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DF-1/4 | UNF 1/4-28 | 6.35 | 7.00 | 28 | 25.00 | 3B | 80.00 | 15.00 | 3 | 5.50 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DF-5/16 | UNF 5/16-24 | 7.94 | 8.00 | 24 | 29.50 | 3B | 90.00 | 18.00 | 3 | 6.90 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DF-3/8 | UNF 3/8-24 | 9.52 | 10.00 | 24 | 33.50 | 3B | 100.00 | 20.00 | 4 | 8.50 | DIN 2184-1 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
