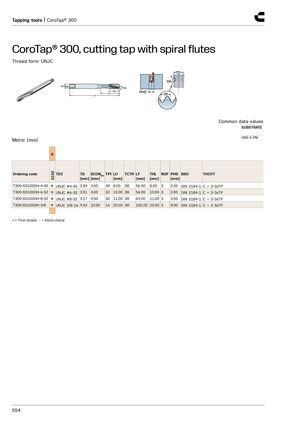

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: UNJC
Общие данные: Материал HSS-E-PM
| Код заказа | Резьба | TDZ | TD | DCONMS | TPI | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SD100DH-4-40 | UNJC #4-40 | 2.84 | 3.50 | 40 | 8.00 | 3B | 56.00 | 8.00 | 3 | 2.35 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DH-6-32 | UNJC #6-32 | 3.51 | 4.00 | 32 | 10.00 | 3B | 56.00 | 10.00 | 3 | 2.85 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DH-8-32 | UNJC #8-32 | 4.17 | 4.50 | 32 | 11.00 | 3B | 63.00 | 11.00 | 3 | 3.50 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DH-3/8 | UNJC 3/8-16 | 9.52 | 10.00 | 16 | 25.00 | 3B | 100.00 | 25.00 | 3 | 8.00 | DIN 2184-1 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
