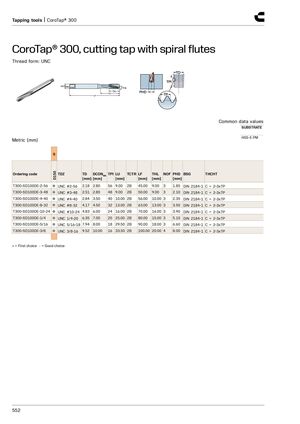

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: UNC
Общие данные: Материал HSS-E-PM
| Код заказа | Резьба | TDZ | TD | DCONMS | TPI | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SD100DE-2-56 | UNC #2-56 | 2.18 | 2.80 | 56 | 9.00 | 2B | 45.00 | 9.00 | 3 | 1.85 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DE-3-48 | UNC #3-48 | 2.51 | 2.80 | 48 | 9.00 | 2B | 50.00 | 9.00 | 3 | 2.10 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DE-4-40 | UNC #4-40 | 2.84 | 3.50 | 40 | 10.00 | 2B | 56.00 | 10.00 | 3 | 2.35 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DE-8-32 | UNC #8-32 | 4.17 | 4.50 | 32 | 13.00 | 2B | 63.00 | 13.00 | 3 | 3.50 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DE-10-24 | UNC #10-24 | 4.83 | 6.00 | 24 | 16.00 | 2B | 70.00 | 16.00 | 3 | 3.90 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DE-1/4 | UNC 1/4-20 | 6.35 | 7.00 | 20 | 25.00 | 2B | 80.00 | 15.00 | 3 | 5.10 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DE-5/16 | UNC 5/16-18 | 7.94 | 8.00 | 18 | 29.50 | 2B | 90.00 | 18.00 | 3 | 6.60 | DIN 2184-1 | C = 2-3xTP | |
| T300-SD100DE-3/8 | UNC 3/8-16 | 9.52 | 10.00 | 16 | 33.50 | 2B | 100.00 | 20.00 | 4 | 8.00 | DIN 2184-1 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
