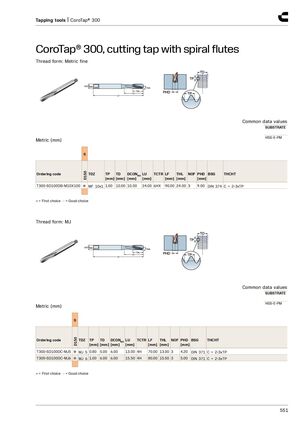

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: Метрическая мелкая
Общие данные: Материал HSS-E-PM
| Код заказа | Резьба | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SD100DB-M10X100 | MF 10x1 | 1.00 | 10.00 | 10.00 | 24.00 | 6HX | 90.00 | 24.00 | 3 | 9.00 | DIN 374 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
Форма резьбы: MJ
Общие данные: Материал HSS-E-PM
| Код заказа | Резьба | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SD100DC-MJ5 | MJ 5 | 0.80 | 5.00 | 6.00 | 13.00 | 4H | 70.00 | 13.00 | 3 | 4.20 | DIN 371 | C = 2-3xTP |
| T300-SD100DC-MJ6 | MJ 6 | 1.00 | 6.00 | 6.00 | 15.50 | 4H | 80.00 | 15.50 | 3 | 5.00 | DIN 371 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
