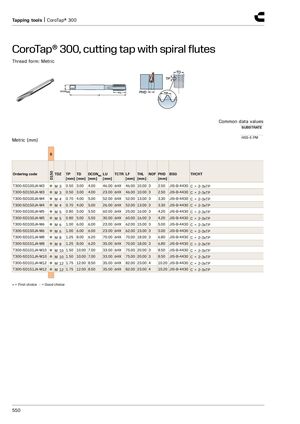

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: Метрическая
Общие данные: Материал HSS-E-PM
| Код заказа | Резьба | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SD100JA-M3 | M 3 | 0.50 | 3.00 | 4.00 | 46.00 | 6HX | 46.00 | 10.00 | 3 | 2.50 | JIS-B-4430 | C = 2-3xTP |
| T300-SD150JA-M3 | M 3 | 0.50 | 3.00 | 4.00 | 23.00 | 6HX | 46.00 | 10.00 | 3 | 2.50 | JIS-B-4430 | C = 2-3xTP |
| T300-SD100JA-M4 | M 4 | 0.70 | 4.00 | 5.00 | 52.00 | 6HX | 52.00 | 13.00 | 3 | 3.30 | JIS-B-4430 | C = 2-3xTP |
| T300-SD150JA-M4 | M 4 | 0.70 | 4.00 | 5.00 | 26.00 | 6HX | 52.00 | 13.00 | 3 | 3.30 | JIS-B-4430 | C = 2-3xTP |
| T300-SD100JA-M5 | M 5 | 0.80 | 5.00 | 5.50 | 60.00 | 6HX | 25.00 | 16.00 | 3 | 4.20 | JIS-B-4430 | C = 2-3xTP |
| T300-SD150JA-M5 | M 5 | 0.80 | 5.00 | 5.50 | 30.00 | 6HX | 60.00 | 16.00 | 3 | 4.20 | JIS-B-4430 | C = 2-3xTP |
| T300-SD100JA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 23.00 | 6HX | 62.00 | 15.00 | 3 | 5.00 | JIS-B-4430 | C = 2-3xTP |
| T300-SD150JA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 23.00 | 6HX | 62.00 | 15.00 | 3 | 5.00 | JIS-B-4430 | C = 2-3xTP |
| T300-SD101JA-M8 | M 8 | 1.25 | 8.00 | 6.20 | 70.00 | 6HX | 70.00 | 18.00 | 3 | 6.80 | JIS-B-4430 | C = 2-3xTP |
| T300-SD151JA-M8 | M 8 | 1.25 | 8.00 | 6.20 | 35.00 | 6HX | 70.00 | 18.00 | 3 | 6.80 | JIS-B-4430 | C = 2-3xTP |
| T300-SD101JA-M10 | M 10 | 1.50 | 10.00 | 7.00 | 33.00 | 6HX | 75.00 | 20.00 | 3 | 8.50 | JIS-B-4430 | C = 2-3xTP |
| T300-SD151JA-M10 | M 10 | 1.50 | 10.00 | 7.00 | 33.00 | 6HX | 75.00 | 20.00 | 3 | 8.50 | JIS-B-4430 | C = 2-3xTP |
| T300-SD101JA-M12 | M 12 | 1.75 | 12.00 | 8.50 | 35.00 | 6HX | 82.00 | 23.00 | 4 | 10.20 | JIS-B-4430 | C = 2-3xTP |
| T300-SD151JA-M12 | M 12 | 1.75 | 12.00 | 8.50 | 35.00 | 6HX | 82.00 | 23.00 | 4 | 10.20 | JIS-B-4430 | C = 2-3xTP |
● = Первый выбор, ○ = Хороший выбор
