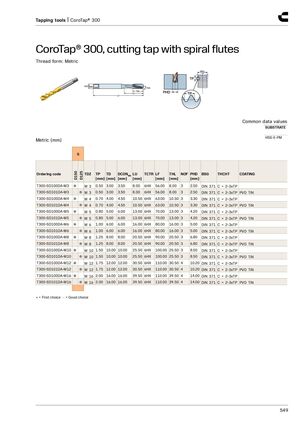

Инструменты для нарезания резьбы | CoroTap® 300
CoroTap® 300, метчик машинный с винтовыми канавками
Форма резьбы: Метрическая
Общие данные: Материал HSS-E-PM
| Код заказа | Резьба | TP | TD | DCONMS | LU | TCTR | LF | THL | NOF | PHD | Стандарт | BSG / THCHT | Покрытие |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-SD100DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 8.00 | 6HX | 56.00 | 8.00 | 3 | 2.50 | DIN 371 | C = 2-3xTP | — |
| T300-SD101DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 8.00 | 6HX | 56.00 | 8.00 | 3 | 2.50 | DIN 371 | C = 2-3xTP | PVD TiN |
| T300-SD100DA-M4 | M 4 | 0.70 | 4.00 | 4.50 | 10.50 | 6HX | 63.00 | 10.50 | 3 | 3.30 | DIN 371 | C = 2-3xTP | — |
| T300-SD101DA-M4 | M 4 | 0.70 | 4.00 | 4.50 | 10.50 | 6HX | 63.00 | 10.50 | 3 | 3.30 | DIN 371 | C = 2-3xTP | PVD TiN |
| T300-SD100DA-M5 | M 5 | 0.80 | 5.00 | 6.00 | 13.00 | 6HX | 70.00 | 13.00 | 3 | 4.20 | DIN 371 | C = 2-3xTP | — |
| T300-SD101DA-M5 | M 5 | 0.80 | 5.00 | 6.00 | 13.00 | 6HX | 70.00 | 13.00 | 3 | 4.20 | DIN 371 | C = 2-3xTP | PVD TiN |
| T300-SD100DA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 16.00 | 6HX | 80.00 | 16.00 | 3 | 5.00 | DIN 371 | C = 2-3xTP | — |
| T300-SD101DA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 16.00 | 6HX | 80.00 | 16.00 | 3 | 5.00 | DIN 371 | C = 2-3xTP | PVD TiN |
| T300-SD100DA-M8 | M 8 | 1.25 | 8.00 | 8.00 | 20.50 | 6HX | 90.00 | 20.50 | 3 | 6.80 | DIN 371 | C = 2-3xTP | — |
| T300-SD101DA-M8 | M 8 | 1.25 | 8.00 | 8.00 | 20.50 | 6HX | 90.00 | 20.50 | 3 | 6.80 | DIN 371 | C = 2-3xTP | PVD TiN |
| T300-SD100DA-M10 | M 10 | 1.50 | 10.00 | 10.00 | 25.50 | 6HX | 100.00 | 25.50 | 3 | 8.50 | DIN 371 | C = 2-3xTP | — |
| T300-SD101DA-M10 | M 10 | 1.50 | 10.00 | 10.00 | 25.50 | 6HX | 100.00 | 25.50 | 3 | 8.50 | DIN 371 | C = 2-3xTP | PVD TiN |
| T300-SD100DA-M12 | M 12 | 1.75 | 12.00 | 12.00 | 30.50 | 6HX | 110.00 | 30.50 | 4 | 10.20 | DIN 371 | C = 2-3xTP | — |
| T300-SD101DA-M12 | M 12 | 1.75 | 12.00 | 12.00 | 30.50 | 6HX | 110.00 | 30.50 | 4 | 10.20 | DIN 371 | C = 2-3xTP | PVD TiN |
| T300-SD100DA-M16 | M 16 | 2.00 | 16.00 | 16.00 | 39.50 | 6HX | 110.00 | 39.50 | 4 | 14.00 | DIN 371 | C = 2-3xTP | — |
| T300-SD101DA-M16 | M 16 | 2.00 | 16.00 | 16.00 | 39.50 | 6HX | 110.00 | 39.50 | 4 | 14.00 | DIN 371 | C = 2-3xTP | PVD TiN |
● = Первый выбор, ○ = Хороший выбор
