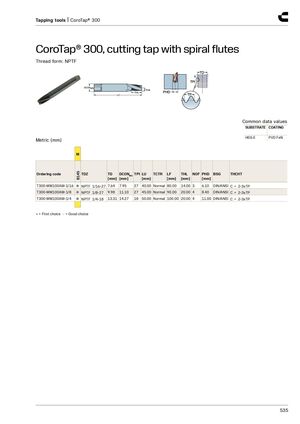

CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: NPTF
| Параметр | Значение |
|---|---|
| Материал основы | HSS-E |
| Покрытие | PVD FeN |
| Код заказа | Выбор | Резьба (TDZ) | TD [мм] | DCONMS [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-MM100AM-1/16 | ● | NPTF 1/16-27 | 7.64 | 7.95 | 27 | 40.00 | Normal | 80.00 | 14.00 | 3 | 6.10 | DIN/ANSI | C = 2-3xTP |
| T300-MM100AM-1/8 | ● | NPTF 1/8-27 | 9.98 | 11.10 | 27 | 45.00 | Normal | 90.00 | 20.00 | 4 | 8.40 | DIN/ANSI | C = 2-3xTP |
| T300-MM100AM-1/4 | ● | NPTF 1/4-18 | 13.31 | 14.27 | 18 | 50.00 | Normal | 100.00 | 20.00 | 4 | 11.00 | DIN/ANSI | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
