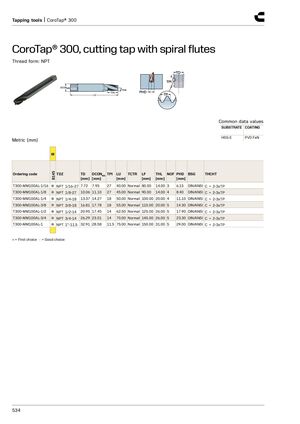

CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: NPT
| Параметр | Значение |
|---|---|
| Материал основы | HSS-E |
| Покрытие | PVD FeN |
| Код заказа | Выбор | Резьба (TDZ) | TD [мм] | DCONMS [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-MM100AL-1/16 | ● | NPT 1/16-27 | 7.72 | 7.95 | 27 | 40.00 | Normal | 80.00 | 14.00 | 3 | 6.15 | DIN/ANSI | C = 2-3xTP |
| T300-MM100AL-1/8 | ● | NPT 1/8-27 | 10.06 | 11.10 | 27 | 45.00 | Normal | 90.00 | 14.00 | 4 | 8.40 | DIN/ANSI | C = 2-3xTP |
| T300-MM100AL-1/4 | ● | NPT 1/4-18 | 13.37 | 14.27 | 18 | 50.00 | Normal | 100.00 | 20.00 | 4 | 11.10 | DIN/ANSI | C = 2-3xTP |
| T300-MM100AL-3/8 | ● | NPT 3/8-18 | 16.81 | 17.78 | 18 | 55.00 | Normal | 110.00 | 20.00 | 5 | 14.30 | DIN/ANSI | C = 2-3xTP |
| T300-MM100AL-1/2 | ● | NPT 1/2-14 | 20.95 | 17.45 | 14 | 62.50 | Normal | 125.00 | 26.00 | 5 | 17.90 | DIN/ANSI | C = 2-3xTP |
| T300-MM100AL-3/4 | ● | NPT 3/4-14 | 26.29 | 23.01 | 14 | 70.00 | Normal | 140.00 | 26.00 | 5 | 23.30 | DIN/ANSI | C = 2-3xTP |
| T300-MM100AL-1 | ● | NPT 1”-11.5 | 32.91 | 28.58 | 11.5 | 75.00 | Normal | 150.00 | 31.00 | 5 | 29.00 | DIN/ANSI | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
