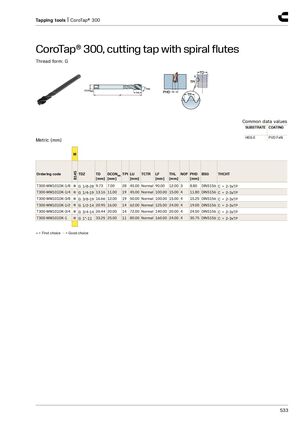

CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: G
| Параметр | Значение |
|---|---|
| Материал основы | HSS-E |
| Покрытие | PVD FeN |
| Код заказа | Выбор | Резьба (TDZ) | TD [мм] | DCONMS [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-MM101DK-1/8 | ● | G 1/8-28 | 9.73 | 7.00 | 28 | 45.00 | Normal | 90.00 | 12.00 | 3 | 8.80 | DIN5156 | C = 2-3xTP |
| T300-MM101DK-1/4 | ● | G 1/4-19 | 13.16 | 11.00 | 19 | 45.00 | Normal | 100.00 | 15.00 | 4 | 11.80 | DIN5156 | C = 2-3xTP |
| T300-MM101DK-3/8 | ● | G 3/8-19 | 16.66 | 12.00 | 19 | 50.00 | Normal | 100.00 | 15.00 | 4 | 15.25 | DIN5156 | C = 2-3xTP |
| T300-MM101DK-1/2 | ● | G 1/2-14 | 20.95 | 16.00 | 14 | 62.00 | Normal | 125.00 | 24.00 | 4 | 19.00 | DIN5156 | C = 2-3xTP |
| T300-MM101DK-3/4 | ● | G 3/4-14 | 26.44 | 20.00 | 14 | 72.00 | Normal | 140.00 | 20.00 | 4 | 24.50 | DIN5156 | C = 2-3xTP |
| T300-MM101DK-1 | ● | G 1”-11 | 33.25 | 25.00 | 11 | 80.00 | Normal | 160.00 | 24.00 | 4 | 30.75 | DIN5156 | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
