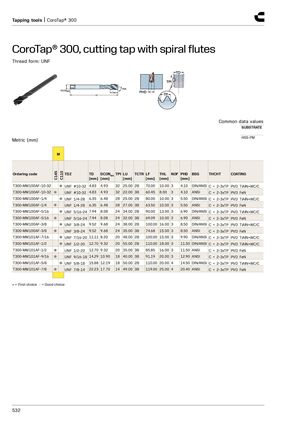

CoroTap® 300, метчик машинный со спиральными канавками
Форма резьбы: UNF
| Параметр | Значение |
|---|---|
| Материал основы | HSS-PM |
| Код заказа | Выбор | Резьба (TDZ) | TD [мм] | DCONMS [мм] | TPI | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT | Покрытие |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T300-MM100AF-10-32 | ● | UNF #10-32 | 4.83 | 4.93 | 32 | 25.00 | 2B | 70.00 | 10.00 | 3 | 4.10 | DIN/ANSI | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100AF-10-32 | ● | UNF #10-32 | 4.83 | 4.93 | 32 | 22.00 | 3B | 60.45 | 8.00 | 3 | 4.10 | ANSI | C = 2-3xTP | PVD FeN |
| T300-MM100AF-1/4 | ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 25.00 | 2B | 80.00 | 10.00 | 3 | 5.50 | DIN/ANSI | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100AF-1/4 | ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 27.00 | 3B | 63.50 | 10.00 | 3 | 5.50 | ANSI | C = 2-3xTP | PVD FeN |
| T300-MM100AF-5/16 | ● | UNF 5/16-24 | 7.94 | 8.08 | 24 | 34.00 | 2B | 90.00 | 13.00 | 3 | 6.90 | DIN/ANSI | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100AF-5/16 | ● | UNF 5/16-24 | 7.94 | 8.08 | 24 | 32.00 | 3B | 69.09 | 10.00 | 3 | 6.90 | ANSI | C = 2-3xTP | PVD FeN |
| T300-MM100AF-3/8 | ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 38.00 | 2B | 100.00 | 16.00 | 3 | 8.50 | DIN/ANSI | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM100AF-3/8 | ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 35.00 | 3B | 74.68 | 15.00 | 3 | 8.50 | ANSI | C = 2-3xTP | PVD FeN |
| T300-MM101AF-7/16 | ● | UNF 7/16-20 | 11.11 | 8.20 | 20 | 48.00 | 2B | 100.00 | 15.00 | 3 | 9.90 | DIN/ANSI | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM101AF-1/2 | ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 55.00 | 2B | 110.00 | 18.00 | 3 | 11.50 | DIN/ANSI | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM101AF-1/2 | ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 35.00 | 3B | 85.85 | 16.00 | 3 | 11.50 | ANSI | C = 2-3xTP | PVD FeN |
| T300-MM101AF-9/16 | ● | UNF 9/16-18 | 14.29 | 10.90 | 18 | 40.00 | 3B | 91.19 | 20.00 | 3 | 12.90 | ANSI | C = 2-3xTP | PVD FeN |
| T300-MM101AF-5/8 | ● | UNF 5/8-18 | 15.88 | 12.19 | 18 | 50.00 | 2B | 110.00 | 20.00 | 4 | 14.50 | DIN/ANSI | C = 2-3xTP | PVD TiAlN+WC/C |
| T300-MM101AF-7/8 | ● | UNF 7/8-14 | 22.23 | 17.70 | 14 | 49.00 | 3B | 119.00 | 25.00 | 4 | 20.40 | ANSI | C = 2-3xTP | PVD FeN |
● = Первый выбор ○ = Хороший выбор
