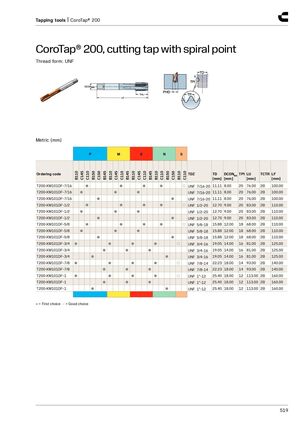

CoroTap® 200, резьбонарезной метчик со спиральной заточкой
Форма резьбы: UNF
Метрические размеры (мм)
| Условное обозначение | Резьба | TDZ, мм | TD, мм | TPI | LU, мм | Допуск | LF, мм | Варианты марок (P/M/K/N/S) |
|---|---|---|---|---|---|---|---|---|
| T200-XM101DF-7/16 | UNF 7/16-20 | 11.11 | 8.00 | 20 | 76.00 | 2B | 100.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101DF-1/2 | UNF 1/2-20 | 12.70 | 9.00 | 20 | 83.00 | 2B | 110.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101DF-5/8 | UNF 5/8-18 | 15.88 | 12.00 | 18 | 68.00 | 2B | 110.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101DF-3/4 | UNF 3/4-16 | 19.05 | 14.00 | 16 | 81.00 | 2B | 125.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101DF-7/8 | UNF 7/8-14 | 22.23 | 18.00 | 14 | 93.00 | 2B | 140.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
| T200-XM101DF-1 | UNF 1"-12 | 25.40 | 18.00 | 12 | 113.00 | 2B | 160.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
● = первый выбор, ○ = хороший выбор.
