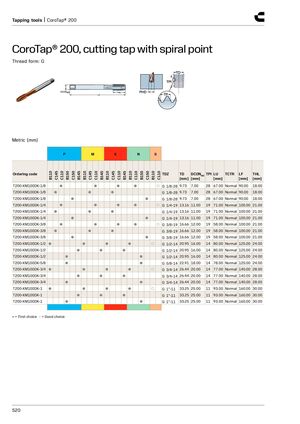

CoroTap® 200, резьбонарезной метчик со спиральной заточкой
Форма резьбы: G
Метрические размеры (мм)
| Условное обозначение | Резьба | TDZ, мм | TD, мм | TPI | LU, мм | TCTR | LF, мм | THL, мм | Варианты марок (P/M/K/N/S) |
|---|---|---|---|---|---|---|---|---|---|
| T200-XM100DK-1/8 | G 1/8-28 | 9.73 | 7.00 | 28 | 67.00 | Normal | 90.00 | 18.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DK-1/4 | G 1/4-19 | 13.16 | 11.00 | 19 | 71.00 | Normal | 100.00 | 21.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DK-3/8 | G 3/8-19 | 16.66 | 12.00 | 19 | 58.00 | Normal | 100.00 | 21.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DK-1/2 | G 1/2-14 | 20.95 | 16.00 | 14 | 80.00 | Normal | 125.00 | 24.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DK-5/8 | G 5/8-14 | 22.91 | 18.00 | 14 | 78.00 | Normal | 125.00 | 24.00 | Вариант 3: ● ● |
| T200-XM100DK-3/4 | G 3/4-14 | 26.44 | 20.00 | 14 | 77.00 | Normal | 140.00 | 28.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DK-1 | G 1"-11 | 33.25 | 25.00 | 11 | 93.00 | Normal | 160.00 | 30.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
● = первый выбор, ○ = хороший выбор.
