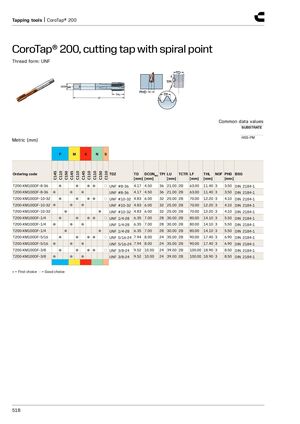

CoroTap® 200, резьбонарезной метчик со спиральной заточкой
Форма резьбы: UNF
Общие значения
Подложка: HSS-PM
Метрические размеры (мм)
| Условное обозначение | Резьба | TDZ, мм | TD, мм | TPI | LU, мм | Допуск | LF, мм | THL, мм | NOF | PHD, мм | BSG | Варианты марок (P/M/K/N/S) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-XM100DF-8-36 | UNF #8-36 | 4.17 | 4.50 | 36 | 21.00 | 2B | 63.00 | 11.40 | 3 | 3.50 | DIN 2184-1 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
| T200-XM100DF-10-32 | UNF #10-32 | 4.83 | 6.00 | 32 | 25.00 | 2B | 70.00 | 12.20 | 3 | 4.10 | DIN 2184-1 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DF-1/4 | UNF 1/4-28 | 6.35 | 7.00 | 28 | 30.00 | 2B | 80.00 | 14.10 | 3 | 5.50 | DIN 2184-1 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DF-5/16 | UNF 5/16-24 | 7.94 | 8.00 | 24 | 35.00 | 2B | 90.00 | 17.40 | 3 | 6.90 | DIN 2184-1 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
| T200-XM100DF-3/8 | UNF 3/8-24 | 9.52 | 10.00 | 24 | 39.00 | 2B | 100.00 | 18.90 | 3 | 8.50 | DIN 2184-1 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
● = первый выбор, ○ = хороший выбор.
