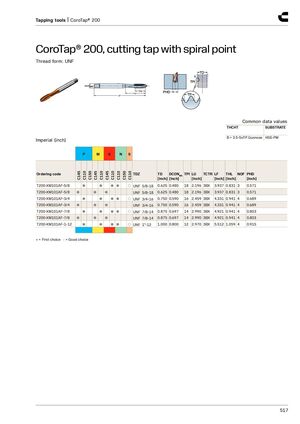

CoroTap® 200, резьбонарезной метчик со спиральной заточкой
Форма резьбы: UNF
Общие значения
THCHT: B = 3.5–5×TP, гуннозубый. Подложка: HSS-PM
Дюймовые размеры (inch)
| Условное обозначение | Резьба | TDZ, дюйм | TD, дюйм | TPI | LU, дюйм | Допуск | LF, дюйм | THL, дюйм | NOF | PHD, дюйм | Варианты марок (P/M/K/N/S) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-XM101AF-5/8 | UNF 5/8-18 | 0.625 | 0.480 | 18 | 2.196 | 3BX | 3.937 | 0.831 | 3 | 0.571 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
| T200-XM101AF-3/4 | UNF 3/4-16 | 0.750 | 0.590 | 16 | 2.459 | 3BX | 4.331 | 0.941 | 4 | 0.689 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
| T200-XM101AF-7/8 | UNF 7/8-14 | 0.875 | 0.697 | 14 | 2.990 | 3BX | 4.921 | 0.941 | 4 | 0.803 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
| T200-XM101AF-1-12 | UNF 1"-12 | 1.000 | 0.800 | 12 | 2.970 | 3BX | 5.512 | 1.059 | 4 | 0.915 | Вариант 1: ● ● ● ● ○ |
● = первый выбор, ○ = хороший выбор.
