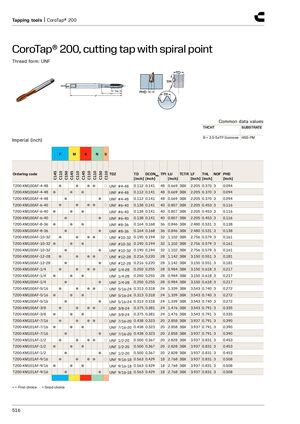

CoroTap® 200, резьбонарезной метчик со спиральной заточкой
Форма резьбы: UNF
Общие значения
THCHT: B = 3.5–5×TP, гуннозубый. Подложка: HSS-PM
Дюймовые размеры (inch)
| Условное обозначение | Резьба | TDZ, дюйм | TD, дюйм | TPI | LU, дюйм | Допуск | LF, дюйм | THL, дюйм | NOF | PHD, дюйм | Варианты марок (P/M/K/N/S) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-XM100AF-4-48 | UNF #4-48 | 0.112 | 0.141 | 48 | 0.669 | 3BX | 2.205 | 0.370 | 3 | 0.094 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100AF-6-40 | UNF #6-40 | 0.138 | 0.141 | 40 | 0.807 | 3BX | 2.205 | 0.453 | 3 | 0.116 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100AF-8-36 | UNF #8-36 | 0.164 | 0.168 | 36 | 0.846 | 3BX | 2.480 | 0.531 | 3 | 0.138 | Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100AF-10-32 | UNF #10-32 | 0.190 | 0.194 | 32 | 1.102 | 3BX | 2.756 | 0.579 | 3 | 0.161 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100AF-12-28 | UNF #12-28 | 0.216 | 0.220 | 28 | 1.142 | 3BX | 3.150 | 0.551 | 3 | 0.181 | Вариант 1: ● ● ● ● ○; Вариант 3: ● ● |
| T200-XM100AF-1/4 | UNF 1/4-28 | 0.250 | 0.255 | 28 | 0.984 | 3BX | 3.150 | 0.618 | 3 | 0.217 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100AF-5/16 | UNF 5/16-24 | 0.313 | 0.318 | 24 | 1.339 | 3BX | 3.543 | 0.740 | 3 | 0.272 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100AF-3/8 | UNF 3/8-24 | 0.375 | 0.381 | 24 | 1.476 | 3BX | 3.543 | 0.791 | 3 | 0.335 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
| T200-XM101AF-7/16 | UNF 7/16-20 | 0.438 | 0.323 | 20 | 2.858 | 3BX | 3.937 | 0.791 | 3 | 0.390 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101AF-1/2 | UNF 1/2-20 | 0.500 | 0.367 | 20 | 2.828 | 3BX | 3.937 | 0.831 | 3 | 0.453 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101AF-9/16 | UNF 9/16-18 | 0.563 | 0.429 | 18 | 2.768 | 3BX | 3.937 | 0.831 | 3 | 0.508 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
● = первый выбор, ○ = хороший выбор.
