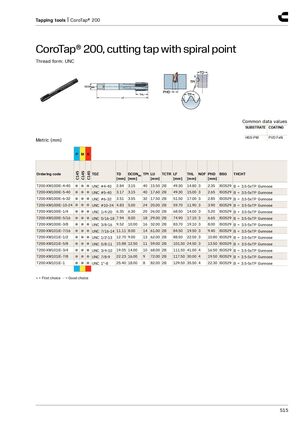

CoroTap® 200, резьбонарезной метчик со спиральной заточкой
Форма резьбы: UNC
Общие значения
Подложка/покрытие: HSS-PM, PVD FeN
Метрические размеры (мм)
| Условное обозначение | Группы P/M/K | Резьба | TDZ, мм | TD, мм | TPI | LU, мм | Допуск | LF, мм | THL, мм | NOF | PHD, мм | BSG / THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-XM100IE-4-40 | ● ● ● | UNC #4-40 | 2.84 | 3.15 | 40 | 15.50 | 2B | 49.30 | 14.80 | 3 | 2.35 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM100IE-5-40 | ● ● ● | UNC #5-40 | 3.17 | 3.15 | 40 | 17.60 | 2B | 49.30 | 15.00 | 3 | 2.65 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM100IE-6-32 | ● ● ● | UNC #6-32 | 3.51 | 3.55 | 32 | 17.50 | 2B | 51.50 | 17.00 | 3 | 2.85 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM100IE-10-24 | ● ● ● | UNC #10-24 | 4.83 | 5.00 | 24 | 20.00 | 2B | 59.70 | 11.90 | 3 | 3.90 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM100IE-1/4 | ● ● ● | UNC 1/4-20 | 6.35 | 6.30 | 20 | 26.00 | 2B | 68.50 | 14.00 | 3 | 5.20 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM100IE-5/16 | ● ● ● | UNC 5/16-18 | 7.94 | 8.00 | 18 | 29.00 | 2B | 74.90 | 17.10 | 3 | 6.65 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM100IE-3/8 | ● ● ● | UNC 3/8-16 | 9.52 | 10.00 | 16 | 32.00 | 2B | 83.70 | 19.10 | 3 | 8.00 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM101IE-7/16 | ● ● ● | UNC 7/16-14 | 11.11 | 8.00 | 14 | 61.00 | 2B | 84.50 | 19.50 | 3 | 9.40 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM101IE-1/2 | ● ● ● | UNC 1/2-13 | 12.70 | 9.00 | 13 | 62.00 | 2B | 88.50 | 22.50 | 3 | 10.80 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM101IE-5/8 | ● ● ● | UNC 5/8-11 | 15.88 | 12.50 | 11 | 59.00 | 2B | 101.50 | 24.50 | 3 | 13.50 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM101IE-3/4 | ● ● ● | UNC 3/4-10 | 19.05 | 14.00 | 10 | 68.00 | 2B | 111.50 | 41.00 | 4 | 16.50 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM101IE-7/8 | ● ● ● | UNC 7/8-9 | 22.23 | 16.00 | 9 | 72.00 | 2B | 117.50 | 30.00 | 4 | 19.50 | ISO529 B = 3.5–5×TP, гуннозубый |
| T200-XM101IE-1 | ● ● ● | UNC 1"-8 | 25.40 | 18.00 | 8 | 82.00 | 2B | 129.50 | 35.50 | 4 | 22.30 | ISO529 B = 3.5–5×TP, гуннозубый |
● = первый выбор, ○ = хороший выбор.
