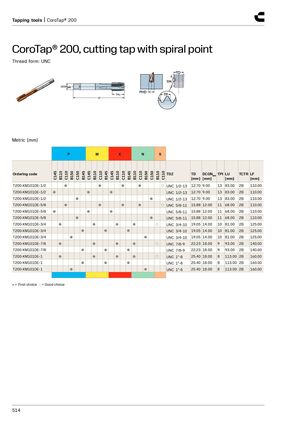

CoroTap® 200, резьбонарезной метчик со спиральной заточкой
Форма резьбы: UNC
Метрические размеры (мм)
| Условное обозначение | Резьба | TDZ, мм | TD, мм | TPI | LU, мм | Допуск | LF, мм | Варианты марок (P/M/K/N/S) |
|---|---|---|---|---|---|---|---|---|
| T200-XM101DE-1/2 | UNC 1/2-13 | 12.70 | 9.00 | 13 | 83.00 | 2B | 110.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101DE-5/8 | UNC 5/8-11 | 15.88 | 12.00 | 11 | 68.00 | 2B | 110.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101DE-3/4 | UNC 3/4-10 | 19.05 | 14.00 | 10 | 81.00 | 2B | 125.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101DE-7/8 | UNC 7/8-9 | 22.23 | 18.00 | 9 | 93.00 | 2B | 140.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
| T200-XM101DE-1 | UNC 1"-8 | 25.40 | 18.00 | 8 | 113.00 | 2B | 160.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ● |
● = первый выбор, ○ = хороший выбор.
