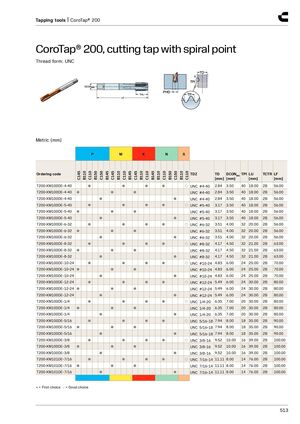

CoroTap® 200, резьбонарезной метчик со спиральной заточкой
Форма резьбы: UNC
Метрические размеры (мм)
| Условное обозначение | Резьба | TDZ, мм | TD, мм | TPI | LU, мм | Допуск | LF, мм | Варианты марок (P/M/K/N/S) |
|---|---|---|---|---|---|---|---|---|
| T200-XM100DE-4-40 | UNC #4-40 | 2.84 | 3.50 | 40 | 18.00 | 2B | 56.00 | Вариант 1: ● ● ● ● ○ (первый выбор для четырёх групп, хороший выбор для одной); Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DE-5-40 | UNC #5-40 | 3.17 | 3.50 | 40 | 18.00 | 2B | 56.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DE-6-32 | UNC #6-32 | 3.51 | 4.00 | 32 | 20.00 | 2B | 56.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DE-8-32 | UNC #8-32 | 4.17 | 4.50 | 32 | 21.00 | 2B | 63.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DE-10-24 | UNC #10-24 | 4.83 | 6.00 | 24 | 25.00 | 2B | 70.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DE-12-24 | UNC #12-24 | 5.49 | 6.00 | 24 | 30.00 | 2B | 80.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DE-1/4 | UNC 1/4-20 | 6.35 | 7.00 | 20 | 30.00 | 2B | 80.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DE-5/16 | UNC 5/16-18 | 7.94 | 8.00 | 18 | 35.00 | 2B | 90.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM100DE-3/8 | UNC 3/8-16 | 9.52 | 10.00 | 16 | 39.00 | 2B | 100.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
| T200-XM101DE-7/16 | UNC 7/16-14 | 11.11 | 8.00 | 14 | 76.00 | 2B | 100.00 | Вариант 1: ● ● ● ● ○; Вариант 2: ● ● ●; Вариант 3: ● ● |
● = первый выбор, ○ = хороший выбор.
