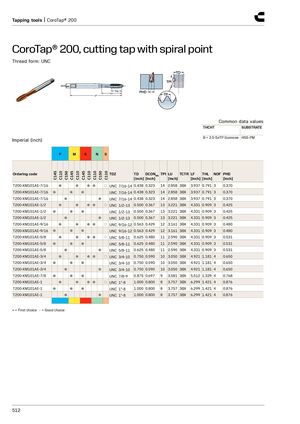

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик машинный со спиральной канавкой
Форма резьбы: UNC
Общие значения данных
| THCHT | B = 3.5-5xTP Gunnose |
|---|---|
| Материал (подложка) | HSS-PM |
Дюймовая (дюймы)
| Код заказа | Применимость (P/M/K/N/S) | Обозначение | TD [дюйм] | DCONMS [дюйм] | TPI | LU [дюйм] | TCTR | LF [дюйм] | THL [дюйм] | NOF | PHD [дюйм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-XM101AE-7/16 | ● ● ● ● ○ | UNC 7/16-14 | 0.438 | 0.323 | 14 | 2.858 | 3BX | 3.937 | 0.791 | 3 | 0.370 |
| T200-XM101AE-7/16 | ● ● ● | UNC 7/16-14 | 0.438 | 0.323 | 14 | 2.858 | 3BX | 3.937 | 0.791 | 3 | 0.370 |
| T200-XM101AE-7/16 | ● ● | UNC 7/16-14 | 0.438 | 0.323 | 14 | 2.858 | 3BX | 3.937 | 0.791 | 3 | 0.370 |
| T200-XM101AE-1/2 | ● ● ● ● ○ | UNC 1/2-13 | 0.500 | 0.367 | 13 | 3.221 | 3BX | 4.331 | 0.909 | 3 | 0.425 |
| T200-XM101AE-1/2 | ● ● ● | UNC 1/2-13 | 0.500 | 0.367 | 13 | 3.221 | 3BX | 4.331 | 0.909 | 3 | 0.425 |
| T200-XM101AE-1/2 | ● ● | UNC 1/2-13 | 0.500 | 0.367 | 13 | 3.221 | 3BX | 4.331 | 0.909 | 3 | 0.425 |
| T200-XM101AE-9/16 | ● ● ● ● ○ | UNC 9/16-12 | 0.563 | 0.429 | 12 | 3.161 | 3BX | 4.331 | 0.909 | 3 | 0.480 |
| T200-XM101AE-9/16 | ● ● ● | UNC 9/16-12 | 0.563 | 0.429 | 12 | 3.161 | 3BX | 4.331 | 0.909 | 3 | 0.480 |
| T200-XM101AE-5/8 | ● ● ● ● ○ | UNC 5/8-11 | 0.625 | 0.480 | 11 | 2.590 | 3BX | 4.331 | 0.909 | 3 | 0.531 |
| T200-XM101AE-5/8 | ● ● ● | UNC 5/8-11 | 0.625 | 0.480 | 11 | 2.590 | 3BX | 4.331 | 0.909 | 3 | 0.531 |
| T200-XM101AE-5/8 | ● ● | UNC 5/8-11 | 0.625 | 0.480 | 11 | 2.590 | 3BX | 4.331 | 0.909 | 3 | 0.531 |
| T200-XM101AE-3/4 | ● ● ● ● ○ | UNC 3/4-10 | 0.750 | 0.590 | 10 | 3.050 | 3BX | 4.921 | 1.181 | 4 | 0.650 |
| T200-XM101AE-3/4 | ● ● ● | UNC 3/4-10 | 0.750 | 0.590 | 10 | 3.050 | 3BX | 4.921 | 1.181 | 4 | 0.650 |
| T200-XM101AE-3/4 | ● ● | UNC 3/4-10 | 0.750 | 0.590 | 10 | 3.050 | 3BX | 4.921 | 1.181 | 4 | 0.650 |
| T200-XM101AE-7/8 | ● ● ● | UNC 7/8-9 | 0.875 | 0.697 | 9 | 3.581 | 3BX | 5.512 | 1.339 | 4 | 0.768 |
| T200-XM101AE-1 | ● ● ● ● ○ | UNC 1"-8 | 1.000 | 0.800 | 8 | 3.757 | 3BX | 6.299 | 1.421 | 4 | 0.876 |
| T200-XM101AE-1 | ● ● ● | UNC 1"-8 | 1.000 | 0.800 | 8 | 3.757 | 3BX | 6.299 | 1.421 | 4 | 0.876 |
| T200-XM101AE-1 | ● ● | UNC 1"-8 | 1.000 | 0.800 | 8 | 3.757 | 3BX | 6.299 | 1.421 | 4 | 0.876 |
● = Первый выбор ○ = Хороший выбор
