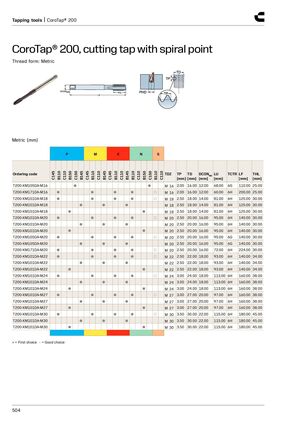

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик машинный со спиральной заборной частью
Форма резьбы: Metric (метрическая)
Метрическая система (мм)
| Код заказа | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] |
|---|---|---|---|---|---|---|---|---|
| T200-XM105DA-M16 | M 16 | 2.00 | 16.00 | 12.00 | 68.00 | 6G | 110.00 | 25.00 |
| T200-XM171DA-M16 | M 16 | 2.00 | 16.00 | 12.00 | 60.00 | 6H | 200.00 | 25.00 |
| T200-XM101DA-M18 | M 18 | 2.50 | 18.00 | 14.00 | 81.00 | 6H | 125.00 | 30.00 |
| T200-XM101DA-M20 | M 20 | 2.50 | 20.00 | 16.00 | 95.00 | 6H | 140.00 | 30.00 |
| T200-XM105DA-M20 | M 20 | 2.50 | 20.00 | 16.00 | 95.00 | 6G | 140.00 | 30.00 |
| T200-XM171DA-M20 | M 20 | 2.50 | 20.00 | 16.00 | 72.00 | 6H | 224.00 | 30.00 |
| T200-XM101DA-M22 | M 22 | 2.50 | 22.00 | 18.00 | 93.00 | 6H | 140.00 | 34.00 |
| T200-XM101DA-M24 | M 24 | 3.00 | 24.00 | 18.00 | 113.00 | 6H | 160.00 | 38.00 |
| T200-XM101DA-M27 | M 27 | 3.00 | 27.00 | 20.00 | 97.00 | 6H | 160.00 | 38.00 |
| T200-XM101DA-M30 | M 30 | 3.50 | 30.00 | 22.00 | 115.00 | 6H | 180.00 | 45.00 |
Каждая позиция доступна с разными вариантами хвостовика/направляющей (P, M, K, N, S) и типоразмерами (B110, B145, B150, C110, C145, C150) — отмечено символами ● и ○ в исходной таблице.
● = Первый выбор ○ = Хороший выбор
