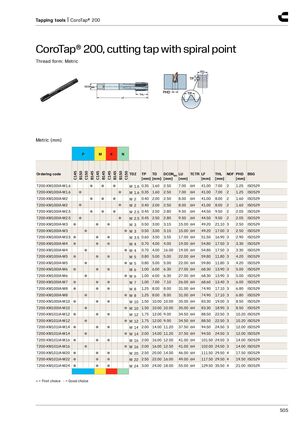

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик машинный со спиральной канавкой
Форма резьбы: метрическая
Метрическая (мм)
| Код заказа | Применимость (P/M/K/N) | Обозначение | TP | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | Стандарт |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-XM100IA-M1.6 | ● ● ● | M 1.6 | 0.35 | 1.60 | 2.50 | 7.00 | 6H | 41.00 | 7.00 | 2 | 1.25 | ISO529 |
| T200-XM100IA-M1.6 | ● ● | M 1.6 | 0.35 | 1.60 | 2.50 | 7.00 | 6H | 41.00 | 7.00 | 2 | 1.25 | ISO529 |
| T200-XM100IA-M2 | ● ● ● | M 2 | 0.40 | 2.00 | 2.50 | 8.00 | 6H | 41.00 | 8.00 | 2 | 1.60 | ISO529 |
| T200-XM100IA-M2 | ● ● | M 2 | 0.40 | 2.00 | 2.50 | 8.00 | 6H | 41.00 | 8.00 | 2 | 1.60 | ISO529 |
| T200-XM100IA-M2.5 | ● ● ● | M 2.5 | 0.45 | 2.50 | 2.80 | 9.50 | 6H | 44.50 | 9.50 | 2 | 2.05 | ISO529 |
| T200-XM100IA-M2.5 | ● ● | M 2.5 | 0.45 | 2.50 | 2.80 | 9.50 | 6H | 44.50 | 9.50 | 2 | 2.05 | ISO529 |
| T200-XM100IA-M3 | ● ● ● | M 3 | 0.50 | 3.00 | 3.15 | 15.00 | 6H | 49.20 | 21.10 | 3 | 2.50 | ISO529 |
| T200-XM100IA-M3 | ● ● | M 3 | 0.50 | 3.00 | 3.15 | 15.00 | 6H | 49.20 | 17.00 | 3 | 2.50 | ISO529 |
| T200-XM100IA-M3.5 | ● ● ● | M 3.5 | 0.60 | 3.50 | 3.55 | 17.00 | 6H | 51.50 | 16.90 | 3 | 2.90 | ISO529 |
| T200-XM100IA-M4 | ● ● ● | M 4 | 0.70 | 4.00 | 4.00 | 19.00 | 6H | 54.80 | 17.50 | 3 | 3.30 | ISO529 |
| T200-XM100IA-M4 | ● ● | M 4 | 0.70 | 4.00 | 16.00 | 19.00 | 6H | 54.80 | 17.50 | 3 | 3.30 | ISO529 |
| T200-XM100IA-M5 | ● ● ● | M 5 | 0.80 | 5.00 | 5.00 | 22.00 | 6H | 59.80 | 11.80 | 3 | 4.20 | ISO529 |
| T200-XM100IA-M5 | ● ● | M 5 | 0.80 | 5.00 | 5.00 | 22.00 | 6H | 59.80 | 11.80 | 3 | 4.20 | ISO529 |
| T200-XM100IA-M6 | ● ● ● | M 6 | 1.00 | 6.00 | 6.30 | 27.00 | 6H | 68.30 | 13.90 | 3 | 5.00 | ISO529 |
| T200-XM100IA-M6 | ● ● | M 6 | 1.00 | 6.00 | 6.30 | 27.00 | 6H | 68.30 | 13.90 | 3 | 5.00 | ISO529 |
| T200-XM100IA-M7 | ● ● ● | M 7 | 1.00 | 7.00 | 7.10 | 26.00 | 6H | 68.60 | 13.40 | 3 | 6.00 | ISO529 |
| T200-XM100IA-M8 | ● ● ● | M 8 | 1.25 | 8.00 | 8.00 | 31.00 | 6H | 74.90 | 17.10 | 3 | 6.80 | ISO529 |
| T200-XM100IA-M8 | ● ● | M 8 | 1.25 | 8.00 | 8.00 | 31.00 | 6H | 74.90 | 17.10 | 3 | 6.80 | ISO529 |
| T200-XM100IA-M10 | ● ● ● | M 10 | 1.50 | 10.00 | 10.00 | 35.00 | 6H | 83.30 | 19.00 | 3 | 8.50 | ISO529 |
| T200-XM100IA-M10 | ● ● | M 10 | 1.50 | 10.00 | 10.00 | 35.00 | 6H | 83.30 | 18.90 | 3 | 8.50 | ISO529 |
| T200-XM101IA-M12 | ● ● ● | M 12 | 1.75 | 12.00 | 9.00 | 34.50 | 6H | 88.50 | 22.50 | 3 | 10.20 | ISO529 |
| T200-XM101IA-M12 | ● ● | M 12 | 1.75 | 12.00 | 9.00 | 34.50 | 6H | 88.50 | 22.50 | 3 | 10.20 | ISO529 |
| T200-XM101IA-M14 | ● ● ● | M 14 | 2.00 | 14.00 | 11.20 | 37.50 | 6H | 94.50 | 24.50 | 3 | 12.00 | ISO529 |
| T200-XM101IA-M14 | ● ● | M 14 | 2.00 | 14.00 | 11.20 | 37.50 | 6H | 94.50 | 24.50 | 3 | 12.00 | ISO529 |
| T200-XM101IA-M16 | ● ● ● | M 16 | 2.00 | 16.00 | 12.50 | 41.00 | 6H | 101.50 | 24.50 | 3 | 14.00 | ISO529 |
| T200-XM101IA-M16 | ● ● | M 16 | 2.00 | 16.00 | 12.50 | 41.00 | 6H | 102.00 | 24.50 | 3 | 14.00 | ISO529 |
| T200-XM101IA-M20 | ● ● ● | M 20 | 2.50 | 20.00 | 14.00 | 46.00 | 6H | 111.50 | 29.50 | 4 | 17.50 | ISO529 |
| T200-XM101IA-M22 | ● ● ● | M 22 | 2.50 | 22.00 | 16.00 | 49.00 | 6H | 117.50 | 29.50 | 4 | 19.50 | ISO529 |
| T200-XM101IA-M24 | ● ● ● | M 24 | 3.00 | 24.00 | 18.00 | 55.00 | 6H | 129.50 | 35.50 | 4 | 21.00 | ISO529 |
● = Первый выбор ○ = Хороший выбор
