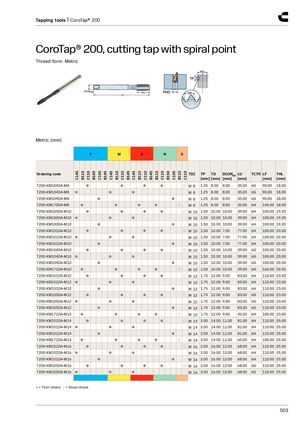

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик машинный со спиральной заборной частью
Форма резьбы: Metric (метрическая)
Метрическая система (мм)
| Код заказа | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] |
|---|---|---|---|---|---|---|---|---|
| T200-XM104DA-M8 | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6G | 90.00 | 18.00 |
| T200-XM170DA-M8 | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6H | 140.00 | 18.00 |
| T200-XM100DA-M10 | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6H | 100.00 | 19.20 |
| T200-XM101DA-M10 | M 10 | 1.50 | 10.00 | 7.00 | 77.00 | 6H | 100.00 | 20.00 |
| T200-XM104DA-M10 | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6G | 100.00 | 20.00 |
| T200-XM171DA-M10 | M 10 | 1.50 | 10.00 | 10.00 | 39.00 | 6H | 160.00 | 20.00 |
| T200-XM101DA-M12 | M 12 | 1.75 | 12.00 | 9.00 | 83.00 | 6H | 110.00 | 23.00 |
| T200-XM105DA-M12 | M 12 | 1.75 | 12.00 | 9.00 | 83.00 | 6G | 110.00 | 23.00 |
| T200-XM171DA-M12 | M 12 | 1.75 | 12.00 | 9.00 | 42.00 | 6H | 180.00 | 23.00 |
| T200-XM101DA-M14 | M 14 | 2.00 | 14.00 | 11.00 | 81.00 | 6H | 110.00 | 25.00 |
| T200-XM171DA-M14 | M 14 | 2.00 | 14.00 | 11.00 | 60.00 | 6H | 180.00 | 25.00 |
| T200-XM101DA-M16 | M 16 | 2.00 | 16.00 | 12.00 | 68.00 | 6H | 110.00 | 25.00 |
| T200-XM105DA-M16 | M 16 | 2.00 | 16.00 | 12.00 | 68.00 | 6G | 110.00 | 25.00 |
Каждая позиция доступна с разными вариантами хвостовика/направляющей (P, M, K, N, S) и типоразмерами (B110, B145, B150, C110, C145, C150) — отмечено символами ● и ○ в исходной таблице.
● = Первый выбор ○ = Хороший выбор
