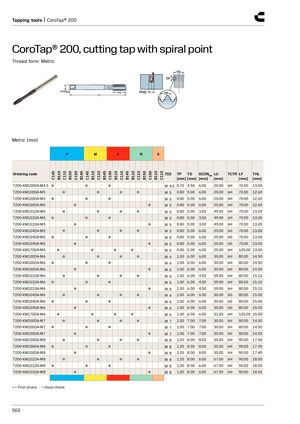

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик машинный со спиральной заборной частью
Форма резьбы: Metric (метрическая)
Метрическая система (мм)
| Код заказа | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] |
|---|---|---|---|---|---|---|---|---|
| T200-XM100DA-M4.5 | M 4.5 | 0.75 | 4.50 | 6.00 | 25.00 | 6H | 70.00 | 13.00 |
| T200-XM100DA-M5 | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6H | 70.00 | 12.60 |
| T200-XM101DA-M5 | M 5 | 0.80 | 5.00 | 3.50 | 49.00 | 6H | 70.00 | 13.20 |
| T200-XM104DA-M5 | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6G | 70.00 | 13.00 |
| T200-XM170DA-M5 | M 5 | 0.80 | 5.00 | 6.00 | 25.00 | 6H | 125.00 | 13.00 |
| T200-XM100DA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6H | 80.00 | 14.50 |
| T200-XM101DA-M6 | M 6 | 1.00 | 6.00 | 4.50 | 59.00 | 6H | 80.00 | 15.10 |
| T200-XM104DA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6G | 80.00 | 15.00 |
| T200-XM170DA-M6 | M 6 | 1.00 | 6.00 | 6.00 | 31.00 | 6H | 125.00 | 15.00 |
| T200-XM100DA-M7 | M 7 | 1.00 | 7.00 | 7.00 | 30.00 | 6H | 80.00 | 14.50 |
| T200-XM100DA-M8 | M 8 | 1.25 | 8.00 | 8.00 | 35.00 | 6H | 90.00 | 17.40 |
| T200-XM101DA-M8 | M 8 | 1.25 | 8.00 | 6.00 | 67.00 | 6H | 90.00 | 18.00 |
Каждая позиция доступна с разными вариантами хвостовика/направляющей (P, M, K, N, S) и типоразмерами (B110, B145, B150, C110, C145, C150) — отмечено символами ● и ○ в исходной таблице.
● = Первый выбор ○ = Хороший выбор
