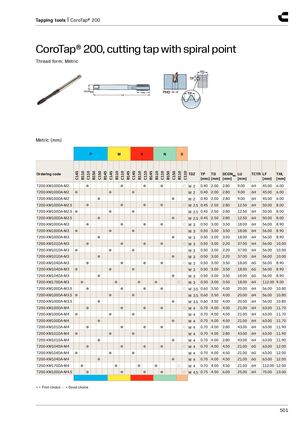

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, метчик машинный со спиральной заборной частью
Форма резьбы: Metric (метрическая)
Метрическая система (мм)
| Код заказа | Резьба | TDZ | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] |
|---|---|---|---|---|---|---|---|---|---|
| T200-XM100DA-M2 | M 2 | 0.40 | 2.00 | 2.80 | 9.00 | 6H | 45.00 | 6.00 | |
| T200-XM100DA-M2.5 | M 2.5 | 0.45 | 2.50 | 2.80 | 12.50 | 6H | 50.00 | 8.00 | |
| T200-XM100DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6H | 56.00 | 8.90 | |
| T200-XM101DA-M3 | M 3 | 0.50 | 3.00 | 2.20 | 37.00 | 6H | 56.00 | 10.00 | |
| T200-XM104DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6G | 56.00 | 8.90 | |
| T200-XM170DA-M3 | M 3 | 0.50 | 3.00 | 3.50 | 18.00 | 6H | 112.00 | 9.00 | |
| T200-XM100DA-M3.5 | M 3.5 | 0.60 | 3.50 | 4.00 | 20.00 | 6H | 56.00 | 10.80 | |
| T200-XM100DA-M4 | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6H | 63.00 | 11.70 | |
| T200-XM101DA-M4 | M 4 | 0.70 | 4.00 | 2.80 | 43.00 | 6H | 63.00 | 11.90 | |
| T200-XM104DA-M4 | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6G | 63.00 | 12.00 | |
| T200-XM170DA-M4 | M 4 | 0.70 | 4.00 | 4.50 | 21.00 | 6H | 112.00 | 12.00 | |
| T200-XM100DA-M4.5 | M 4.5 | 0.75 | 4.50 | 6.00 | 25.00 | 6H | 70.00 | 13.00 |
Каждая позиция доступна с разными вариантами хвостовика/направляющей (P, M, K, N, S — маркировка на держателе) и типоразмерами хвостовика (B110, B145, B150, C110, C145, C150) — отмечено символами ● и ○ в исходной таблице.
● = Первый выбор ○ = Хороший выбор
