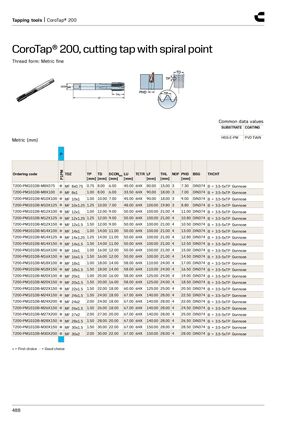

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, машинный метчик со спиральной канавкой
Профиль резьбы: Метрическая мелкая
Общие параметры: ОСНОВА — HSS-E-PM, Покрытие — PVD TiAlN
Метрическая (мм): P, P1PM
| Код заказа | Выбор | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-PM101DB-M8X075 | ● | MF 8x0.75 | 0.75 | 8.00 | 6.00 | 40.00 | 6HX | 80.00 | 15.00 | 3 | 7.30 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M8X100 | ● | MF 8x1 | 1.00 | 8.00 | 6.00 | 33.50 | 6HX | 90.00 | 18.00 | 3 | 7.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M10X100 | ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 45.00 | 6HX | 90.00 | 18.00 | 3 | 9.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M10X125 | ● | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 48.00 | 6HX | 100.00 | 19.80 | 3 | 8.80 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M12X100 | ● | MF 12x1 | 1.00 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 4 | 11.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M12X125 | ● | MF 12x1.25 | 1.25 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 4 | 10.80 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M12X150 | ● | MF 12x1.5 | 1.50 | 12.00 | 9.00 | 50.00 | 6HX | 100.00 | 21.00 | 4 | 10.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M14X100 | ● | MF 14x1 | 1.00 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 4 | 13.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M14X125 | ● | MF 14x1.25 | 1.25 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 4 | 12.80 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M14X150 | ● | MF 14x1.5 | 1.50 | 14.00 | 11.00 | 50.00 | 6HX | 100.00 | 21.00 | 4 | 12.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M16X100 | ● | MF 16x1 | 1.00 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 21.00 | 4 | 15.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M16X150 | ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 50.00 | 6HX | 100.00 | 21.00 | 4 | 14.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M18X100 | ● | MF 18x1 | 1.00 | 18.00 | 14.00 | 58.00 | 6HX | 110.00 | 24.00 | 4 | 17.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M18X150 | ● | MF 18x1.5 | 1.50 | 18.00 | 14.00 | 58.00 | 6HX | 110.00 | 24.00 | 4 | 16.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M20X100 | ● | MF 20x1 | 1.00 | 20.00 | 16.00 | 58.00 | 6HX | 125.00 | 24.00 | 4 | 19.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M20X150 | ● | MF 20x1.5 | 1.50 | 20.00 | 16.00 | 58.00 | 6HX | 125.00 | 24.00 | 4 | 18.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M22X150 | ● | MF 22x1.5 | 1.50 | 22.00 | 18.00 | 60.00 | 6HX | 125.00 | 25.00 | 4 | 20.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M24X150 | ● | MF 24x1.5 | 1.50 | 24.00 | 18.00 | 67.00 | 6HX | 140.00 | 28.00 | 4 | 22.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M24X200 | ● | MF 24x2 | 2.00 | 24.00 | 18.00 | 67.00 | 6HX | 140.00 | 28.00 | 4 | 22.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M26X150 | ● | MF 26x1.5 | 1.50 | 26.00 | 18.00 | 67.00 | 6HX | 140.00 | 28.00 | 4 | 24.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M27X200 | ● | MF 27x2 | 2.00 | 27.00 | 20.00 | 67.00 | 6HX | 140.00 | 28.00 | 4 | 25.00 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M28X150 | ● | MF 28x1.5 | 1.50 | 28.00 | 20.00 | 67.00 | 6HX | 140.00 | 28.00 | 4 | 26.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M30X150 | ● | MF 30x1.5 | 1.50 | 30.00 | 22.00 | 67.00 | 6HX | 150.00 | 28.00 | 4 | 28.50 | DIN374 | B = 3.5-5xTP Gunnose |
| T200-PM101DB-M30X200 | ● | MF 30x2 | 2.00 | 30.00 | 22.00 | 67.00 | 6HX | 150.00 | 28.00 | 4 | 28.00 | DIN374 | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
