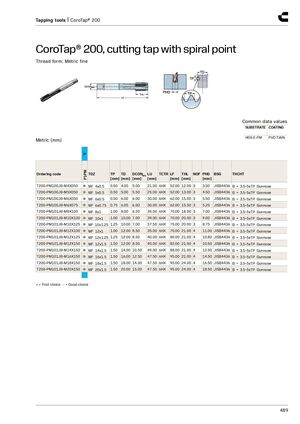

Инструменты для нарезания резьбы | CoroTap® 200
CoroTap® 200, машинный метчик со спиральной канавкой
Профиль резьбы: Метрическая мелкая
Общие параметры: ОСНОВА — HSS-E-PM, Покрытие — PVD TiAlN
Метрическая (мм): P, P1PM
| Код заказа | Выбор | Резьба | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T200-PM100JB-M4X050 | ● | MF 4x0.5 | 0.50 | 4.00 | 5.00 | 21.00 | 6HX | 52.00 | 12.00 | 3 | 3.50 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM100JB-M5X050 | ● | MF 5x0.5 | 0.50 | 5.00 | 5.50 | 25.00 | 6HX | 52.00 | 13.00 | 3 | 4.50 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM100JB-M6X050 | ● | MF 6x0.5 | 0.50 | 6.00 | 6.00 | 30.00 | 6HX | 62.00 | 15.00 | 3 | 5.50 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM100JB-M6X075 | ● | MF 6x0.75 | 0.75 | 6.00 | 6.00 | 30.00 | 6HX | 62.00 | 15.00 | 3 | 5.25 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M8X100 | ● | MF 8x1 | 1.00 | 8.00 | 6.20 | 35.00 | 6HX | 70.00 | 18.00 | 3 | 7.00 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M10X100 | ● | MF 10x1 | 1.00 | 10.00 | 7.00 | 39.00 | 6HX | 70.00 | 20.00 | 3 | 9.00 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M10X125 | ● | MF 10x1.25 | 1.25 | 10.00 | 7.00 | 37.50 | 6HX | 75.00 | 20.00 | 3 | 8.75 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M12X100 | ● | MF 12x1 | 1.00 | 12.00 | 8.50 | 35.00 | 6HX | 70.00 | 21.00 | 4 | 11.00 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M12X125 | ● | MF 12x1.25 | 1.25 | 12.00 | 8.50 | 40.00 | 6HX | 80.00 | 21.00 | 4 | 10.80 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M12X150 | ● | MF 12x1.5 | 1.50 | 12.00 | 8.50 | 40.00 | 6HX | 82.00 | 21.00 | 4 | 10.50 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M14X150 | ● | MF 14x1.5 | 1.50 | 14.00 | 10.50 | 49.00 | 6HX | 88.00 | 21.00 | 4 | 12.50 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M16X150 | ● | MF 16x1.5 | 1.50 | 16.00 | 12.50 | 47.50 | 6HX | 95.00 | 21.00 | 4 | 14.50 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M18X150 | ● | MF 18x1.5 | 1.50 | 18.00 | 14.00 | 47.50 | 6HX | 95.00 | 24.00 | 4 | 16.50 | JISB4436 | B = 3.5-5xTP Gunnose |
| T200-PM101JB-M20X150 | ● | MF 20x1.5 | 1.50 | 20.00 | 15.00 | 47.50 | 6HX | 95.00 | 24.00 | 4 | 18.50 | JISB4436 | B = 3.5-5xTP Gunnose |
● = Первый выбор ○ = Хороший выбор
