Инструменты для нарезания резьбы | CoroTap® 100

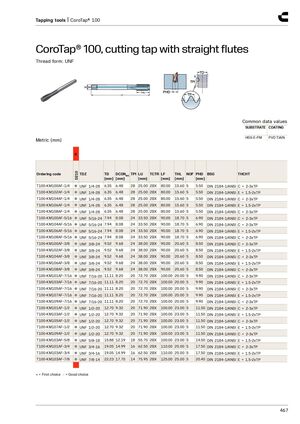

CoroTap® 100, метчик с прямыми канавками
Форма резьбы: UNF
Общие значения данных
SUBSTRATE COATING
HSS-E-PM PVD TiAlN
| Код заказа | Метрика | TD [мм] | DCONMS [мм] | TPI | LU | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-KM100AF-1/4 ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM102AF-1/4 ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM104AF-1/4 ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM106AF-1/4 ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM108AF-1/4 ● | UNF 1/4-28 | 6.35 | 6.48 | 28 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM100AF-5/16 ● | UNF 5/16-24 | 7.94 | 8.08 | 24 | 33.50 | 2BX | 90.00 | 18.70 | 5 | 6.90 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM104AF-5/16 ● | UNF 5/16-24 | 7.94 | 8.08 | 24 | 33.50 | 2BX | 90.00 | 18.70 | 5 | 6.90 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM106AF-5/16 ● | UNF 5/16-24 | 7.94 | 8.08 | 24 | 33.50 | 2BX | 90.00 | 18.70 | 5 | 6.90 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM108AF-5/16 ● | UNF 5/16-24 | 7.94 | 8.08 | 24 | 33.50 | 2BX | 90.00 | 18.70 | 5 | 6.90 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM100AF-3/8 ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 38.00 | 2BX | 90.00 | 20.60 | 5 | 8.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM102AF-3/8 ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 38.00 | 2BX | 90.00 | 20.60 | 5 | 8.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM104AF-3/8 ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 38.00 | 2BX | 90.00 | 20.60 | 5 | 8.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM106AF-3/8 ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 38.00 | 2BX | 90.00 | 20.60 | 5 | 8.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM108AF-3/8 ● | UNF 3/8-24 | 9.52 | 9.68 | 24 | 38.00 | 2BX | 90.00 | 20.60 | 5 | 8.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM101AF-7/16 ● | UNF 7/16-20 | 11.11 | 8.20 | 20 | 72.70 | 2BX | 100.00 | 20.00 | 5 | 9.90 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM103AF-7/16 ● | UNF 7/16-20 | 11.11 | 8.20 | 20 | 72.70 | 2BX | 100.00 | 20.00 | 5 | 9.90 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM105AF-7/16 ● | UNF 7/16-20 | 11.11 | 8.20 | 20 | 72.70 | 2BX | 100.00 | 20.00 | 5 | 9.90 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM107AF-7/16 ● | UNF 7/16-20 | 11.11 | 8.20 | 20 | 72.70 | 2BX | 100.00 | 20.00 | 5 | 9.90 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM109AF-7/16 ● | UNF 7/16-20 | 11.11 | 8.20 | 20 | 72.70 | 2BX | 100.00 | 20.00 | 5 | 9.90 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM101AF-1/2 ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 71.90 | 2BX | 100.00 | 23.00 | 5 | 11.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM103AF-1/2 ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 71.90 | 2BX | 100.00 | 23.00 | 5 | 11.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM105AF-1/2 ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 71.90 | 2BX | 100.00 | 23.00 | 5 | 11.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM107AF-1/2 ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 71.90 | 2BX | 100.00 | 23.00 | 5 | 11.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM109AF-1/2 ● | UNF 1/2-20 | 12.70 | 9.32 | 20 | 71.90 | 2BX | 100.00 | 23.00 | 5 | 11.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM103AF-5/8 ● | UNF 5/8-18 | 15.88 | 12.19 | 18 | 55.70 | 2BX | 100.00 | 23.00 | 5 | 14.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM101AF-3/4 ● | UNF 3/4-16 | 19.05 | 14.99 | 16 | 62.50 | 2BX | 110.00 | 25.00 | 5 | 17.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM103AF-3/4 ● | UNF 3/4-16 | 19.05 | 14.99 | 16 | 62.50 | 2BX | 110.00 | 25.00 | 5 | 17.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM103AF-7/8 ● | UNF 7/8-14 | 22.23 | 17.70 | 14 | 75.95 | 2BX | 125.00 | 25.00 | 5 | 20.40 | DIN 2184-1/ANSI | E = 1.5-2xTP |
● = Первый выбор ○ = Хороший выбор
