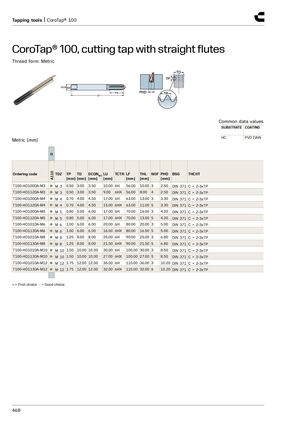

Инструменты для нарезания резьбы | CoroTap® 100
CoroTap® 100, метчик с прямыми канавками
Форма резьбы: метрическая
Общие значения данных
SUBSTRATE COATING
HC PVD TiAlN
| Код заказа | Метрика | TP [мм] | TD [мм] | DCONMS [мм] | LU | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-HD100DA-M3 ● | M 3 | 0.50 | 3.00 | 3.50 | 10.00 | 6H | 56.00 | 10.00 | 3 | 2.50 | DIN 371 | C = 2-3xTP |
| T100-HD112DA-M3 ● | M 3 | 0.50 | 3.00 | 3.50 | 9.00 | 6HX | 56.00 | 8.00 | 4 | 2.50 | DIN 371 | C = 2-3xTP |
| T100-HD100DA-M4 ● | M 4 | 0.70 | 4.00 | 4.50 | 17.00 | 6H | 63.00 | 13.00 | 3 | 3.30 | DIN 371 | C = 2-3xTP |
| T100-HD112DA-M4 ● | M 4 | 0.70 | 4.00 | 4.50 | 15.00 | 6HX | 63.00 | 11.00 | 5 | 3.30 | DIN 371 | C = 2-3xTP |
| T100-HD100DA-M5 ● | M 5 | 0.80 | 5.00 | 6.00 | 17.00 | 6H | 70.00 | 16.00 | 3 | 4.20 | DIN 371 | C = 2-3xTP |
| T100-HD112DA-M5 ● | M 5 | 0.80 | 5.00 | 6.00 | 17.00 | 6HX | 70.00 | 13.50 | 5 | 4.20 | DIN 371 | C = 2-3xTP |
| T100-HD101DA-M6 ● | M 6 | 1.00 | 6.00 | 6.00 | 20.00 | 6H | 80.00 | 20.00 | 3 | 5.00 | DIN 371 | C = 2-3xTP |
| T100-HD113DA-M6 ● | M 6 | 1.00 | 6.00 | 6.00 | 16.50 | 6HX | 80.00 | 16.50 | 5 | 5.00 | DIN 371 | C = 2-3xTP |
| T100-HD101DA-M8 ● | M 8 | 1.25 | 8.00 | 8.00 | 25.00 | 6H | 90.00 | 25.00 | 3 | 6.80 | DIN 371 | C = 2-3xTP |
| T100-HD113DA-M8 ● | M 8 | 1.25 | 8.00 | 8.00 | 21.50 | 6HX | 90.00 | 21.50 | 5 | 6.80 | DIN 371 | C = 2-3xTP |
| T100-HD101DA-M10 ● | M 10 | 1.50 | 10.00 | 10.00 | 30.00 | 6H | 100.00 | 30.00 | 3 | 8.50 | DIN 371 | C = 2-3xTP |
| T100-HD113DA-M10 ● | M 10 | 1.50 | 10.00 | 10.00 | 27.00 | 6HX | 100.00 | 27.00 | 5 | 8.50 | DIN 371 | C = 2-3xTP |
| T100-HD101DA-M12 ● | M 12 | 1.75 | 12.00 | 12.00 | 36.00 | 6H | 110.00 | 36.00 | 3 | 10.20 | DIN 371 | C = 2-3xTP |
| T100-HD113DA-M12 ● | M 12 | 1.75 | 12.00 | 12.00 | 32.00 | 6HX | 110.00 | 32.00 | 6 | 10.20 | DIN 371 | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
