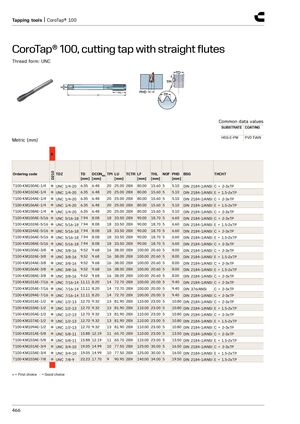

Инструменты для нарезания резьбы | CoroTap® 100
CoroTap® 100, метчик с прямыми канавками
Форма резьбы: UNC
Общие значения данных
SUBSTRATE COATING
HSS-E-PM PVD TiAlN
| Код заказа | Метрика | TD [мм] | DCONMS [мм] | TPI | LU | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-KM100AE-1/4 ● | UNC 1/4-20 | 6.35 | 6.48 | 20 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.10 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM102AE-1/4 ● | UNC 1/4-20 | 6.35 | 6.48 | 20 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.10 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM104AE-1/4 ● | UNC 1/4-20 | 6.35 | 6.48 | 20 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.10 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM106AE-1/4 ● | UNC 1/4-20 | 6.35 | 6.48 | 20 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.10 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM108AE-1/4 ● | UNC 1/4-20 | 6.35 | 6.48 | 20 | 25.00 | 2BX | 80.00 | 15.60 | 5 | 5.10 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM100AE-5/16 ● | UNC 5/16-18 | 7.94 | 8.08 | 18 | 33.50 | 2BX | 90.00 | 18.70 | 5 | 6.60 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM102AE-5/16 ● | UNC 5/16-18 | 7.94 | 8.08 | 18 | 33.50 | 2BX | 90.00 | 18.70 | 5 | 6.60 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM104AE-5/16 ● | UNC 5/16-18 | 7.94 | 8.08 | 18 | 33.50 | 2BX | 90.00 | 18.70 | 5 | 6.60 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM106AE-5/16 ● | UNC 5/16-18 | 7.94 | 8.08 | 18 | 33.50 | 2BX | 90.00 | 18.70 | 5 | 6.60 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM108AE-5/16 ● | UNC 5/16-18 | 7.94 | 8.08 | 18 | 33.50 | 2BX | 90.00 | 18.70 | 5 | 6.60 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM100AE-3/8 ● | UNC 3/8-16 | 9.52 | 9.68 | 16 | 38.00 | 2BX | 100.00 | 20.60 | 5 | 8.00 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM102AE-3/8 ● | UNC 3/8-16 | 9.52 | 9.68 | 16 | 38.00 | 2BX | 100.00 | 20.60 | 5 | 8.00 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM104AE-3/8 ● | UNC 3/8-16 | 9.52 | 9.68 | 16 | 38.00 | 2BX | 100.00 | 20.60 | 5 | 8.00 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM106AE-3/8 ● | UNC 3/8-16 | 9.52 | 9.68 | 16 | 38.00 | 2BX | 100.00 | 20.60 | 5 | 8.00 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM108AE-3/8 ● | UNC 3/8-16 | 9.52 | 9.68 | 16 | 38.00 | 2BX | 100.00 | 20.60 | 5 | 8.00 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM101AE-7/16 ● | UNC 7/16-14 | 11.11 | 8.20 | 14 | 72.70 | 2BX | 100.00 | 20.00 | 5 | 9.40 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM105AE-7/16 ● | UNC 7/16-14 | 11.11 | 8.20 | 14 | 72.70 | 2BX | 100.00 | 20.00 | 5 | 9.40 | DIN 376/ANSI | C = 2-3xTP |
| T100-KM109AE-7/16 ● | UNC 7/16-14 | 11.11 | 8.20 | 14 | 72.70 | 2BX | 100.00 | 20.00 | 5 | 9.40 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM101AE-1/2 ● | UNC 1/2-13 | 12.70 | 9.32 | 13 | 81.90 | 2BX | 110.00 | 23.00 | 5 | 10.80 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM103AE-1/2 ● | UNC 1/2-13 | 12.70 | 9.32 | 13 | 81.90 | 2BX | 110.00 | 23.00 | 5 | 10.80 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM105AE-1/2 ● | UNC 1/2-13 | 12.70 | 9.32 | 13 | 81.90 | 2BX | 110.00 | 23.00 | 5 | 10.80 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM107AE-1/2 ● | UNC 1/2-13 | 12.70 | 9.32 | 13 | 81.90 | 2BX | 110.00 | 23.00 | 5 | 10.80 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM109AE-1/2 ● | UNC 1/2-13 | 12.70 | 9.32 | 13 | 81.90 | 2BX | 110.00 | 23.00 | 5 | 10.80 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM101AE-5/8 ● | UNC 5/8-11 | 15.88 | 12.19 | 11 | 65.70 | 2BX | 110.00 | 23.00 | 5 | 13.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM103AE-5/8 ● | UNC 5/8-11 | 15.88 | 12.19 | 11 | 65.70 | 2BX | 110.00 | 23.00 | 5 | 13.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM101AE-3/4 ● | UNC 3/4-10 | 19.05 | 14.99 | 10 | 77.50 | 2BX | 125.00 | 30.00 | 5 | 16.50 | DIN 2184-1/ANSI | C = 2-3xTP |
| T100-KM103AE-3/4 ● | UNC 3/4-10 | 19.05 | 14.99 | 10 | 77.50 | 2BX | 125.00 | 30.00 | 5 | 16.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
| T100-KM103AE-7/8 ● | UNC 7/8-9 | 22.23 | 17.70 | 9 | 90.95 | 2BX | 140.00 | 34.00 | 5 | 19.50 | DIN 2184-1/ANSI | E = 1.5-2xTP |
● = Первый выбор ○ = Хороший выбор
