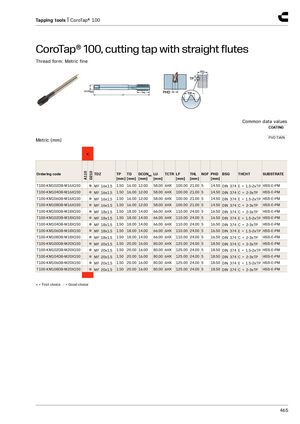

Инструменты для нарезания резьбы | CoroTap® 100
CoroTap® 100, метчик с прямыми канавками
Форма резьбы: метрическая мелкая
Общие значения данных
COATING: PVD TiAlN
| Код заказа | Метрика | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT | SUBSTRATE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-KM102DB-M16X150 ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 58.00 | 6HX | 100.00 | 21.00 | 5 | 14.50 | DIN 374 | E = 1.5-2xTP | HSS-E-PM |
| T100-KM104DB-M16X150 ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 58.00 | 6HX | 100.00 | 21.00 | 5 | 14.50 | DIN 374 | C = 2-3xTP | HSS-E-PM |
| T100-KM106DB-M16X150 ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 58.00 | 6HX | 100.00 | 21.00 | 5 | 14.50 | DIN 374 | E = 1.5-2xTP | HSS-E-PM |
| T100-KM108DB-M16X150 ● | MF 16x1.5 | 1.50 | 16.00 | 12.00 | 58.00 | 6HX | 100.00 | 21.00 | 5 | 14.50 | DIN 374 | C = 2-3xTP | HSS-E-PM |
| T100-KM100DB-M18X150 ● | MF 18x1.5 | 1.50 | 18.00 | 14.00 | 66.00 | 6HX | 110.00 | 24.00 | 5 | 16.50 | DIN 374 | C = 2-3xTP | HSS-E-PM |
| T100-KM102DB-M18X150 ● | MF 18x1.5 | 1.50 | 18.00 | 14.00 | 66.00 | 6HX | 110.00 | 24.00 | 5 | 16.50 | DIN 374 | E = 1.5-2xTP | HSS-E-PM |
| T100-KM104DB-M18X150 ● | MF 18x1.5 | 1.50 | 18.00 | 14.00 | 66.00 | 6HX | 110.00 | 24.00 | 5 | 16.50 | DIN 374 | C = 2-3xTP | HSS-E-PM |
| T100-KM106DB-M18X150 ● | MF 18x1.5 | 1.50 | 18.00 | 14.00 | 66.00 | 6HX | 110.00 | 24.00 | 5 | 16.50 | DIN 374 | E = 1.5-2xTP | HSS-E-PM |
| T100-KM108DB-M18X150 ● | MF 18x1.5 | 1.50 | 18.00 | 14.00 | 66.00 | 6HX | 110.00 | 24.00 | 5 | 16.50 | DIN 374 | C = 2-3xTP | HSS-E-PM |
| T100-KM100DB-M20X150 ● | MF 20x1.5 | 1.50 | 20.00 | 16.00 | 80.00 | 6HX | 125.00 | 24.00 | 5 | 18.50 | DIN 374 | C = 2-3xTP | HSS-E-PM |
| T100-KM102DB-M20X150 ● | MF 20x1.5 | 1.50 | 20.00 | 16.00 | 80.00 | 6HX | 125.00 | 24.00 | 5 | 18.50 | DIN 374 | E = 1.5-2xTP | HSS-E-PM |
| T100-KM104DB-M20X150 ● | MF 20x1.5 | 1.50 | 20.00 | 16.00 | 80.00 | 6HX | 125.00 | 24.00 | 5 | 18.50 | DIN 374 | C = 2-3xTP | HSS-E-PM |
| T100-KM106DB-M20X150 ● | MF 20x1.5 | 1.50 | 20.00 | 16.00 | 80.00 | 6HX | 125.00 | 24.00 | 5 | 18.50 | DIN 374 | E = 1.5-2xTP | HSS-E-PM |
| T100-KM108DB-M20X150 ● | MF 20x1.5 | 1.50 | 20.00 | 16.00 | 80.00 | 6HX | 125.00 | 24.00 | 5 | 18.50 | DIN 374 | C = 2-3xTP | HSS-E-PM |
● = Первый выбор ○ = Хороший выбор
