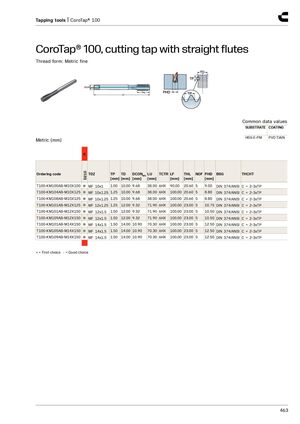

Инструменты для нарезания резьбы | CoroTap® 100
CoroTap® 100, метчик с прямыми канавками
Форма резьбы: метрическая мелкая
Общие значения данных
SUBSTRATE COATING
HSS-E-PM PVD TiAlN
| Код заказа | Метрика | TP [мм] | TD [мм] | DCONMS [мм] | LU | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-KM100AB-M10X100 ● | MF 10x1 | 1.00 | 10.00 | 9.68 | 38.00 | 6HX | 90.00 | 20.60 | 5 | 9.00 | DIN 374/ANSI | C = 2-3xTP |
| T100-KM104AB-M10X125 ● | MF 10x1.25 | 1.25 | 10.00 | 9.68 | 38.00 | 6HX | 100.00 | 20.60 | 5 | 8.80 | DIN 374/ANSI | C = 2-3xTP |
| T100-KM108AB-M10X125 ● | MF 10x1.25 | 1.25 | 10.00 | 9.68 | 38.00 | 6HX | 100.00 | 20.60 | 5 | 8.80 | DIN 374/ANSI | C = 2-3xTP |
| T100-KM101AB-M12X125 ● | MF 12x1.25 | 1.25 | 12.00 | 9.32 | 71.90 | 6HX | 100.00 | 23.00 | 5 | 10.75 | DIN 374/ANSI | C = 2-3xTP |
| T100-KM101AB-M12X150 ● | MF 12x1.5 | 1.50 | 12.00 | 9.32 | 71.90 | 6HX | 100.00 | 23.00 | 5 | 10.50 | DIN 374/ANSI | C = 2-3xTP |
| T100-KM109AB-M12X150 ● | MF 12x1.5 | 1.50 | 12.00 | 9.32 | 71.90 | 6HX | 100.00 | 23.00 | 5 | 10.50 | DIN 374/ANSI | C = 2-3xTP |
| T100-KM101AB-M14X150 ● | MF 14x1.5 | 1.50 | 14.00 | 10.90 | 70.30 | 6HX | 100.00 | 23.00 | 5 | 12.50 | DIN 374/ANSI | C = 2-3xTP |
| T100-KM105AB-M14X150 ● | MF 14x1.5 | 1.50 | 14.00 | 10.90 | 70.30 | 6HX | 100.00 | 23.00 | 5 | 12.50 | DIN 374/ANSI | C = 2-3xTP |
| T100-KM109AB-M14X150 ● | MF 14x1.5 | 1.50 | 14.00 | 10.90 | 70.30 | 6HX | 100.00 | 23.00 | 5 | 12.50 | DIN 374/ANSI | C = 2-3xTP |
● = Первый выбор ○ = Хороший выбор
