Инструменты для нарезания резьбы | CoroTap® 100

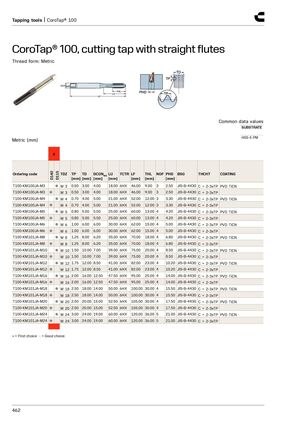

CoroTap® 100, метчик с прямыми канавками
Форма резьбы: метрическая
Общие значения данных
SUBSTRATE: HSS-E-PM
| Код заказа | Метрика | TP [мм] | TD [мм] | DCONMS [мм] | LU | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT | COATING |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-KM100JA-M3 ● | M 3 | 0.50 | 3.00 | 4.00 | 18.00 | 6HX | 46.00 | 9.00 | 3 | 2.50 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM100JA-M3 ● | M 3 | 0.50 | 3.00 | 4.00 | 18.00 | 6HX | 46.00 | 9.00 | 3 | 2.50 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM100JA-M4 ● | M 4 | 0.70 | 4.00 | 5.00 | 21.00 | 6HX | 52.00 | 12.00 | 3 | 3.30 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM100JA-M4 ● | M 4 | 0.70 | 4.00 | 5.00 | 21.00 | 6HX | 52.00 | 12.00 | 3 | 3.30 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM100JA-M5 ● | M 5 | 0.80 | 5.00 | 5.50 | 25.00 | 6HX | 60.00 | 13.00 | 4 | 4.20 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM100JA-M5 ● | M 5 | 0.80 | 5.00 | 5.50 | 25.00 | 6HX | 60.00 | 13.00 | 4 | 4.20 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM100JA-M6 ● | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6HX | 62.00 | 15.00 | 4 | 5.00 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM100JA-M6 ● | M 6 | 1.00 | 6.00 | 6.00 | 30.00 | 6HX | 62.00 | 15.00 | 4 | 5.00 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM101JA-M8 ● | M 8 | 1.25 | 8.00 | 6.20 | 35.00 | 6HX | 70.00 | 18.00 | 4 | 6.80 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM101JA-M8 ● | M 8 | 1.25 | 8.00 | 6.20 | 35.00 | 6HX | 70.00 | 18.00 | 4 | 6.80 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM101JA-M10 ● | M 10 | 1.50 | 10.00 | 7.00 | 39.00 | 6HX | 75.00 | 20.00 | 4 | 8.50 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM101JA-M10 ● | M 10 | 1.50 | 10.00 | 7.00 | 39.00 | 6HX | 75.00 | 20.00 | 4 | 8.50 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM101JA-M12 ● | M 12 | 1.75 | 12.00 | 8.50 | 41.00 | 6HX | 82.00 | 23.00 | 4 | 10.20 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM101JA-M12 ● | M 12 | 1.75 | 12.00 | 8.50 | 41.00 | 6HX | 82.00 | 23.00 | 4 | 10.20 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM101JA-M16 ● | M 16 | 2.00 | 16.00 | 12.50 | 47.50 | 6HX | 95.00 | 25.00 | 4 | 14.00 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM101JA-M16 ● | M 16 | 2.00 | 16.00 | 12.50 | 47.50 | 6HX | 95.00 | 25.00 | 4 | 14.00 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM101JA-M18 ● | M 18 | 2.50 | 18.00 | 14.00 | 50.00 | 6HX | 100.00 | 30.00 | 4 | 15.50 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM101JA-M18 ● | M 18 | 2.50 | 18.00 | 14.00 | 50.00 | 6HX | 100.00 | 30.00 | 4 | 15.50 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM101JA-M20 ● | M 20 | 2.50 | 20.00 | 15.00 | 52.50 | 6HX | 105.00 | 30.00 | 4 | 17.50 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM101JA-M20 ● | M 20 | 2.50 | 20.00 | 15.00 | 52.50 | 6HX | 105.00 | 30.00 | 4 | 17.50 | JIS-B-4430 | C = 2-3xTP | — |
| T100-KM101JA-M24 ● | M 24 | 3.00 | 24.00 | 19.00 | 60.00 | 6HX | 120.00 | 36.00 | 5 | 21.00 | JIS-B-4430 | C = 2-3xTP | PVD TiCN |
| T100-KM101JA-M24 ● | M 24 | 3.00 | 24.00 | 19.00 | 60.00 | 6HX | 120.00 | 36.00 | 5 | 21.00 | JIS-B-4430 | C = 2-3xTP | — |
● = Первый выбор ○ = Хороший выбор
