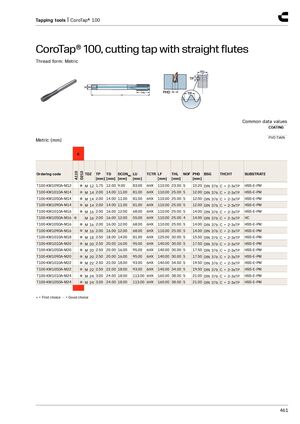

Инструменты для нарезания резьбы | CoroTap® 100
CoroTap® 100, метчик с прямыми канавками
Форма резьбы: метрическая
Общие значения данных
COATING: PVD TiAlN
| Код заказа | Метрика | TP [мм] | TD [мм] | DCONMS [мм] | LU [мм] | TCTR | LF [мм] | THL [мм] | NOF | PHD [мм] | BSG | THCHT | SUBSTRATE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T100-KM109DA-M12 ● | M 12 | 1.75 | 12.00 | 9.00 | 83.00 | 6HX | 110.00 | 23.00 | 5 | 10.20 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM101DA-M14 ● | M 14 | 2.00 | 14.00 | 11.00 | 81.00 | 6HX | 110.00 | 25.00 | 5 | 12.00 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM105DA-M14 ● | M 14 | 2.00 | 14.00 | 11.00 | 81.00 | 6HX | 110.00 | 25.00 | 5 | 12.00 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM109DA-M14 ● | M 14 | 2.00 | 14.00 | 11.00 | 81.00 | 6HX | 110.00 | 25.00 | 5 | 12.00 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM101DA-M16 ● | M 16 | 2.00 | 16.00 | 12.00 | 68.00 | 6HX | 110.00 | 25.00 | 5 | 14.00 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM105DA-M16 ● | M 16 | 2.00 | 16.00 | 12.00 | 55.00 | 6HX | 110.00 | 25.00 | 4 | 14.00 | DIN 376 | C = 2-3xTP | HC |
| T100-KM105DA-M16 ● | M 16 | 2.00 | 16.00 | 12.00 | 68.00 | 6HX | 110.00 | 25.00 | 5 | 14.00 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM109DA-M16 ● | M 16 | 2.00 | 16.00 | 12.00 | 68.00 | 6HX | 110.00 | 25.00 | 5 | 14.00 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM101DA-M18 ● | M 18 | 2.50 | 18.00 | 14.00 | 81.00 | 6HX | 125.00 | 30.00 | 5 | 15.50 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM101DA-M20 ● | M 20 | 2.50 | 20.00 | 16.00 | 95.00 | 6HX | 140.00 | 30.00 | 5 | 17.50 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM105DA-M20 ● | M 20 | 2.50 | 20.00 | 16.00 | 95.00 | 6HX | 140.00 | 30.00 | 5 | 17.50 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM109DA-M20 ● | M 20 | 2.50 | 20.00 | 16.00 | 95.00 | 6HX | 140.00 | 30.00 | 5 | 17.50 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM101DA-M22 ● | M 22 | 2.50 | 22.00 | 18.00 | 93.00 | 6HX | 140.00 | 34.00 | 5 | 19.50 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM105DA-M22 ● | M 22 | 2.50 | 22.00 | 18.00 | 93.00 | 6HX | 140.00 | 34.00 | 5 | 19.50 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM101DA-M24 ● | M 24 | 3.00 | 24.00 | 18.00 | 113.00 | 6HX | 160.00 | 38.00 | 5 | 21.00 | DIN 376 | C = 2-3xTP | HSS-E-PM |
| T100-KM105DA-M24 ● | M 24 | 3.00 | 24.00 | 18.00 | 113.00 | 6HX | 160.00 | 38.00 | 5 | 21.00 | DIN 376 | C = 2-3xTP | HSS-E-PM |
● = Первый выбор ○ = Хороший выбор
