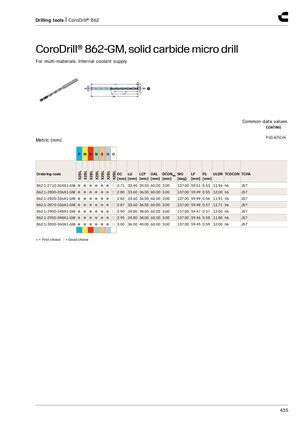

Сверлильный инструмент | CoroDrill® 862
CoroDrill® 862-GM, твердосплавное микросверло цельное
Для мультиматериалов. Внутренний подвод СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD AlTiCrN
Метрическая система (мм)
Применимость: P M K N S H O — X2BL
| Код заказа | P | M | K | N | S | H | O | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-2710-324A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.71 | 32.40 | 35.50 | 60.00 | 3.00 | 137.00 | 59.51 | 0.53 | 11.96 | h6 | JS7 |
| 862.1-2800-336A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.80 | 33.60 | 36.50 | 60.00 | 3.00 | 137.00 | 59.49 | 0.55 | 12.00 | h6 | JS7 |
| 862.1-2820-336A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.82 | 33.60 | 36.50 | 60.00 | 3.00 | 137.00 | 59.49 | 0.56 | 11.91 | h6 | JS7 |
| 862.1-2870-336A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.87 | 33.60 | 36.50 | 60.00 | 3.00 | 137.00 | 59.48 | 0.57 | 11.71 | h6 | JS7 |
| 862.1-2900-348A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.90 | 34.80 | 38.00 | 60.00 | 3.00 | 137.00 | 59.47 | 0.57 | 12.00 | h6 | JS7 |
| 862.1-2950-348A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.95 | 34.80 | 38.00 | 60.00 | 3.00 | 137.00 | 59.46 | 0.58 | 11.80 | h6 | JS7 |
| 862.1-3000-360A1-GM | ● | ● | ● | ● | ● | ● | ○ | 3.00 | 36.00 | 40.00 | 60.00 | 3.00 | 137.00 | 59.45 | 0.59 | 12.00 | h6 | JS7 |
● = первый выбор, ○ = хороший выбор
