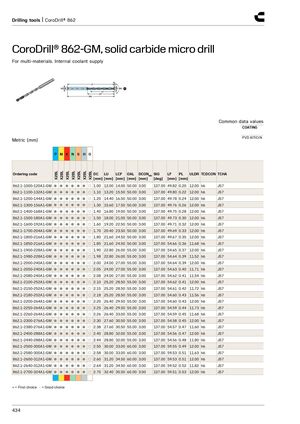

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Для многоцелевой обработки различных материалов. Внутренняя подача СОЖ.
Общие значения
ПОКРЫТИЕ: PVD AlTiCrN
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-1000-120A1-GM | 1.00 | 12.00 | 14.00 | 50.00 | 3.00 | 137.00 | 49.82 | 0.20 | 12.00 | h6 | JS7 |
| 862.1-1100-132A1-GM | 1.10 | 13.20 | 15.50 | 50.00 | 3.00 | 137.00 | 49.80 | 0.22 | 12.00 | h6 | JS7 |
| 862.1-1200-144A1-GM | 1.20 | 14.40 | 16.50 | 50.00 | 3.00 | 137.00 | 49.78 | 0.24 | 12.00 | h6 | JS7 |
| 862.1-1300-156A1-GM | 1.30 | 15.60 | 17.50 | 50.00 | 3.00 | 137.00 | 49.76 | 0.26 | 12.00 | h6 | JS7 |
| 862.1-1400-168A1-GM | 1.40 | 16.80 | 19.00 | 50.00 | 3.00 | 137.00 | 49.75 | 0.28 | 12.00 | h6 | JS7 |
| 862.1-1500-180A1-GM | 1.50 | 18.00 | 21.00 | 50.00 | 3.00 | 137.00 | 49.73 | 0.30 | 12.00 | h6 | JS7 |
| 862.1-1600-192A1-GM | 1.60 | 19.20 | 22.50 | 50.00 | 3.00 | 137.00 | 49.71 | 0.32 | 12.00 | h6 | JS7 |
| 862.1-1700-204A1-GM | 1.70 | 20.40 | 23.50 | 50.00 | 3.00 | 137.00 | 49.69 | 0.33 | 12.00 | h6 | JS7 |
| 862.1-1800-216A1-GM | 1.80 | 21.60 | 24.50 | 50.00 | 3.00 | 137.00 | 49.67 | 0.35 | 12.00 | h6 | JS7 |
| 862.1-1850-216A1-GM | 1.85 | 21.60 | 24.50 | 50.00 | 3.00 | 137.00 | 54.66 | 0.36 | 11.68 | h6 | JS7 |
| 862.1-1900-228A1-GM | 1.90 | 22.80 | 26.00 | 55.00 | 3.00 | 137.00 | 54.65 | 0.37 | 12.00 | h6 | JS7 |
| 862.1-1980-228A1-GM | 1.98 | 22.80 | 26.00 | 55.00 | 3.00 | 137.00 | 54.64 | 0.39 | 11.52 | h6 | JS7 |
| 862.1-2000-240A1-GM | 2.00 | 24.00 | 27.00 | 55.00 | 3.00 | 137.00 | 54.64 | 0.39 | 12.00 | h6 | JS7 |
| 862.1-2050-240A1-GM | 2.05 | 24.00 | 27.00 | 55.00 | 3.00 | 137.00 | 54.63 | 0.40 | 11.71 | h6 | JS7 |
| 862.1-2080-240A1-GM | 2.08 | 24.00 | 27.00 | 55.00 | 3.00 | 137.00 | 54.62 | 0.41 | 11.54 | h6 | JS7 |
| 862.1-2100-252A1-GM | 2.10 | 25.20 | 28.50 | 55.00 | 3.00 | 137.00 | 54.62 | 0.41 | 12.00 | h6 | JS7 |
| 862.1-2150-252A1-GM | 2.15 | 25.20 | 28.50 | 55.00 | 3.00 | 137.00 | 54.61 | 0.42 | 11.72 | h6 | JS7 |
| 862.1-2180-252A1-GM | 2.18 | 25.20 | 28.50 | 55.00 | 3.00 | 137.00 | 54.60 | 0.43 | 11.56 | h6 | JS7 |
| 862.1-2200-264A1-GM | 2.20 | 26.40 | 29.50 | 55.00 | 3.00 | 137.00 | 54.60 | 0.43 | 12.00 | h6 | JS7 |
| 862.1-2250-264A1-GM | 2.25 | 26.40 | 29.50 | 55.00 | 3.00 | 137.00 | 54.59 | 0.44 | 11.73 | h6 | JS7 |
| 862.1-2260-264A1-GM | 2.26 | 26.40 | 33.00 | 55.00 | 3.00 | 137.00 | 54.59 | 0.45 | 11.68 | h6 | JS7 |
| 862.1-2300-276A1-GM | 2.30 | 27.60 | 30.50 | 55.00 | 3.00 | 137.00 | 54.58 | 0.45 | 12.00 | h6 | JS7 |
| 862.1-2380-276A1-GM | 2.38 | 27.60 | 30.50 | 55.00 | 3.00 | 137.00 | 54.57 | 0.47 | 11.60 | h6 | JS7 |
| 862.1-2400-288A1-GM | 2.40 | 28.80 | 32.00 | 55.00 | 3.00 | 137.00 | 54.56 | 0.47 | 12.00 | h6 | JS7 |
| 862.1-2440-288A1-GM | 2.44 | 28.80 | 32.00 | 55.00 | 3.00 | 137.00 | 54.56 | 0.48 | 11.80 | h6 | JS7 |
| 862.1-2500-300A1-GM | 2.50 | 30.00 | 33.00 | 60.00 | 3.00 | 137.00 | 59.55 | 0.49 | 12.00 | h6 | JS7 |
| 862.1-2580-300A1-GM | 2.58 | 30.00 | 33.00 | 60.00 | 3.00 | 137.00 | 59.53 | 0.51 | 11.63 | h6 | JS7 |
| 862.1-2600-312A1-GM | 2.60 | 31.20 | 34.50 | 60.00 | 3.00 | 137.00 | 59.53 | 0.51 | 12.00 | h6 | JS7 |
| 862.1-2640-312A1-GM | 2.64 | 31.20 | 34.50 | 60.00 | 3.00 | 137.00 | 59.52 | 0.52 | 11.82 | h6 | JS7 |
| 862.1-2700-324A1-GM | 2.70 | 32.40 | 35.50 | 60.00 | 3.00 | 137.00 | 59.51 | 0.53 | 12.00 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
