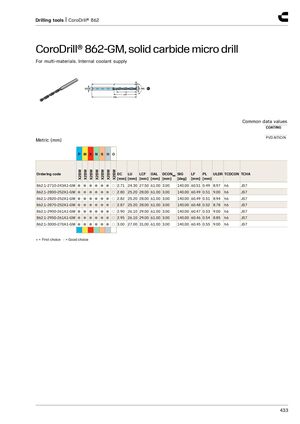

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Для многоцелевой обработки различных материалов. Внутренняя подача СОЖ.
Общие значения
ПОКРЫТИЕ: PVD AlTiCrN
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-2710-243A1-GM | 2.71 | 24.30 | 27.50 | 61.00 | 3.00 | 140.00 | 60.51 | 0.49 | 8.97 | h6 | JS7 |
| 862.1-2800-252A1-GM | 2.80 | 25.20 | 28.00 | 61.00 | 3.00 | 140.00 | 60.49 | 0.51 | 9.00 | h6 | JS7 |
| 862.1-2820-252A1-GM | 2.82 | 25.20 | 28.00 | 61.00 | 3.00 | 140.00 | 60.49 | 0.51 | 8.94 | h6 | JS7 |
| 862.1-2870-252A1-GM | 2.87 | 25.20 | 28.00 | 61.00 | 3.00 | 140.00 | 60.48 | 0.52 | 8.78 | h6 | JS7 |
| 862.1-2900-261A1-GM | 2.90 | 26.10 | 29.00 | 61.00 | 3.00 | 140.00 | 60.47 | 0.53 | 9.00 | h6 | JS7 |
| 862.1-2950-261A1-GM | 2.95 | 26.10 | 29.00 | 61.00 | 3.00 | 140.00 | 60.46 | 0.54 | 8.85 | h6 | JS7 |
| 862.1-3000-270A1-GM | 3.00 | 27.00 | 31.00 | 61.00 | 3.00 | 140.00 | 60.45 | 0.55 | 9.00 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
