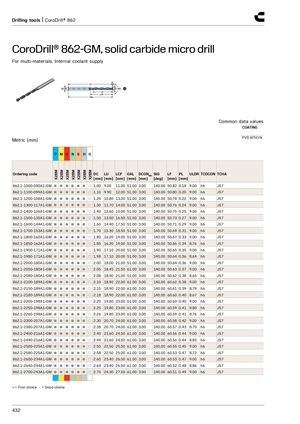

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Для многоцелевой обработки различных материалов. Внутренняя подача СОЖ.
Общие значения
ПОКРЫТИЕ: PVD AlTiCrN
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-1000-090A1-GM | 1.00 | 9.00 | 11.00 | 51.00 | 3.00 | 140.00 | 50.82 | 0.18 | 9.00 | h6 | JS7 |
| 862.1-1100-099A1-GM | 1.10 | 9.90 | 12.00 | 51.00 | 3.00 | 140.00 | 50.80 | 0.20 | 9.00 | h6 | JS7 |
| 862.1-1200-108A1-GM | 1.20 | 10.80 | 13.00 | 51.00 | 3.00 | 140.00 | 50.78 | 0.22 | 9.00 | h6 | JS7 |
| 862.1-1300-117A1-GM | 1.30 | 11.70 | 14.00 | 51.00 | 3.00 | 140.00 | 50.76 | 0.24 | 9.00 | h6 | JS7 |
| 862.1-1400-126A1-GM | 1.40 | 12.60 | 15.00 | 51.00 | 3.00 | 140.00 | 50.75 | 0.25 | 9.00 | h6 | JS7 |
| 862.1-1500-135A1-GM | 1.50 | 13.50 | 16.50 | 51.00 | 3.00 | 140.00 | 50.73 | 0.27 | 9.00 | h6 | JS7 |
| 862.1-1600-144A1-GM | 1.60 | 14.40 | 17.50 | 51.00 | 3.00 | 140.00 | 50.71 | 0.29 | 9.00 | h6 | JS7 |
| 862.1-1700-153A1-GM | 1.70 | 15.30 | 18.50 | 51.00 | 3.00 | 140.00 | 50.69 | 0.31 | 9.00 | h6 | JS7 |
| 862.1-1800-162A1-GM | 1.80 | 16.20 | 19.00 | 51.00 | 3.00 | 140.00 | 50.67 | 0.33 | 9.00 | h6 | JS7 |
| 862.1-1850-162A1-GM | 1.85 | 16.20 | 19.00 | 51.00 | 3.00 | 140.00 | 50.66 | 0.34 | 8.76 | h6 | JS7 |
| 862.1-1900-171A1-GM | 1.90 | 17.10 | 20.00 | 51.00 | 3.00 | 140.00 | 50.65 | 0.35 | 9.00 | h6 | JS7 |
| 862.1-1980-171A1-GM | 1.98 | 17.10 | 20.00 | 51.00 | 3.00 | 140.00 | 50.64 | 0.36 | 8.64 | h6 | JS7 |
| 862.1-2000-180A1-GM | 2.00 | 18.00 | 21.00 | 51.00 | 3.00 | 140.00 | 50.64 | 0.36 | 9.00 | h6 | JS7 |
| 862.1-2050-180A1-GM | 2.05 | 18.45 | 21.50 | 61.00 | 3.00 | 140.00 | 50.63 | 0.37 | 9.00 | h6 | JS7 |
| 862.1-2080-180A1-GM | 2.08 | 18.00 | 21.00 | 51.00 | 3.00 | 140.00 | 50.62 | 0.38 | 8.65 | h6 | JS7 |
| 862.1-2100-189A1-GM | 2.10 | 18.90 | 22.00 | 61.00 | 3.00 | 140.00 | 60.62 | 0.38 | 9.00 | h6 | JS7 |
| 862.1-2150-189A1-GM | 2.15 | 18.90 | 22.00 | 61.00 | 3.00 | 140.00 | 60.61 | 0.39 | 8.79 | h6 | JS7 |
| 862.1-2180-189A1-GM | 2.18 | 18.90 | 22.00 | 61.00 | 3.00 | 140.00 | 60.60 | 0.40 | 8.67 | h6 | JS7 |
| 862.1-2200-198A1-GM | 2.20 | 19.80 | 23.00 | 61.00 | 3.00 | 140.00 | 60.60 | 0.40 | 9.00 | h6 | JS7 |
| 862.1-2250-198A1-GM | 2.25 | 19.80 | 23.00 | 61.00 | 3.00 | 140.00 | 60.59 | 0.41 | 8.80 | h6 | JS7 |
| 862.1-2260-198A1-GM | 2.26 | 19.80 | 23.00 | 61.00 | 3.00 | 140.00 | 60.59 | 0.41 | 8.76 | h6 | JS7 |
| 862.1-2300-207A1-GM | 2.30 | 20.70 | 24.00 | 61.00 | 3.00 | 140.00 | 60.58 | 0.42 | 9.00 | h6 | JS7 |
| 862.1-2380-207A1-GM | 2.38 | 20.70 | 24.00 | 61.00 | 3.00 | 140.00 | 60.57 | 0.43 | 8.70 | h6 | JS7 |
| 862.1-2400-216A1-GM | 2.40 | 21.60 | 24.50 | 61.00 | 3.00 | 140.00 | 60.56 | 0.44 | 9.00 | h6 | JS7 |
| 862.1-2440-216A1-GM | 2.44 | 21.60 | 24.50 | 61.00 | 3.00 | 140.00 | 60.56 | 0.44 | 8.85 | h6 | JS7 |
| 862.1-2500-225A1-GM | 2.50 | 22.50 | 25.50 | 61.00 | 3.00 | 140.00 | 60.55 | 0.45 | 9.00 | h6 | JS7 |
| 862.1-2580-225A1-GM | 2.58 | 22.50 | 25.00 | 61.00 | 3.00 | 140.00 | 60.53 | 0.47 | 8.72 | h6 | JS7 |
| 862.1-2600-234A1-GM | 2.60 | 23.40 | 26.50 | 61.00 | 3.00 | 140.00 | 60.53 | 0.47 | 9.00 | h6 | JS7 |
| 862.1-2640-234A1-GM | 2.64 | 23.40 | 26.50 | 61.00 | 3.00 | 140.00 | 60.52 | 0.48 | 8.86 | h6 | JS7 |
| 862.1-2700-243A1-GM | 2.70 | 24.30 | 27.50 | 61.00 | 3.00 | 140.00 | 60.51 | 0.49 | 9.00 | h6 | JS7 |
● = Первый выбор ○ = Хороший выбор
