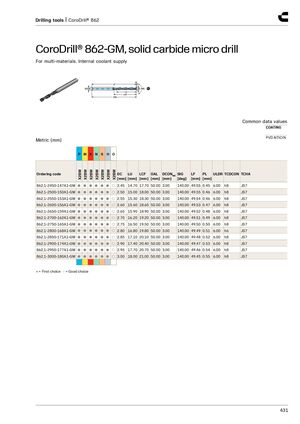

Drilling tools | CoroDrill® 862
CoroDrill® 862-GM, твёрдосплавное монолитное микросвёрло
Для многоцелевой обработки различных материалов. Внутренняя подача СОЖ.
Общие значения
ПОКРЫТИЕ: PVD AlTiCrN
Метрическая система (мм)
| Ordering code | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-2450-147A1-GM | 2.45 | 14.70 | 17.70 | 50.00 | 3.00 | 140.00 | 49.55 | 0.45 | 6.00 | h8 | JS7 |
| 862.1-2500-150A1-GM | 2.50 | 15.00 | 18.00 | 50.00 | 3.00 | 140.00 | 49.55 | 0.46 | 6.00 | h8 | JS7 |
| 862.1-2550-153A1-GM | 2.55 | 15.30 | 18.30 | 50.00 | 3.00 | 140.00 | 49.54 | 0.46 | 6.00 | h8 | JS7 |
| 862.1-2600-156A1-GM | 2.60 | 15.60 | 18.60 | 50.00 | 3.00 | 140.00 | 49.53 | 0.47 | 6.00 | h8 | JS7 |
| 862.1-2650-159A1-GM | 2.65 | 15.90 | 18.90 | 50.00 | 3.00 | 140.00 | 49.52 | 0.48 | 6.00 | h8 | JS7 |
| 862.1-2700-162A1-GM | 2.70 | 16.20 | 19.20 | 50.00 | 3.00 | 140.00 | 49.51 | 0.49 | 6.00 | h8 | JS7 |
| 862.1-2750-165A1-GM | 2.75 | 16.50 | 19.50 | 50.00 | 3.00 | 140.00 | 49.50 | 0.50 | 6.00 | h8 | JS7 |
| 862.1-2800-168A1-GM | 2.80 | 16.80 | 19.80 | 50.00 | 3.00 | 140.00 | 49.49 | 0.51 | 6.00 | h6 | JS7 |
| 862.1-2850-171A1-GM | 2.85 | 17.10 | 20.10 | 50.00 | 3.00 | 140.00 | 49.48 | 0.52 | 6.00 | h8 | JS7 |
| 862.1-2900-174A1-GM | 2.90 | 17.40 | 20.40 | 50.00 | 3.00 | 140.00 | 49.47 | 0.53 | 6.00 | h8 | JS7 |
| 862.1-2950-177A1-GM | 2.95 | 17.70 | 20.70 | 50.00 | 3.00 | 140.00 | 49.46 | 0.54 | 6.00 | h8 | JS7 |
| 862.1-3000-180A1-GM | 3.00 | 18.00 | 21.00 | 50.00 | 3.00 | 140.00 | 49.45 | 0.55 | 6.00 | h8 | JS7 |
● = Первый выбор ○ = Хороший выбор
