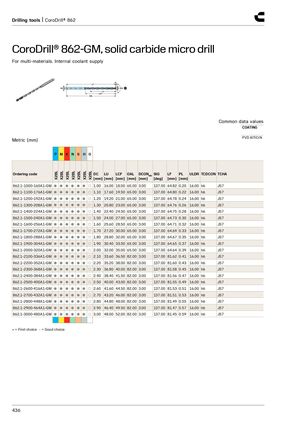

Сверлильный инструмент | CoroDrill® 862
CoroDrill® 862-GM, твердосплавное микросверло цельное
Для мультиматериалов. Внутренний подвод СОЖ.
Общие значения данных
ПОКРЫТИЕ: PVD AlTiCrN
Метрическая система (мм)
Применимость: P M K N S H O — X2BL
| Код заказа | P | M | K | N | S | H | O | DC [mm] | LU [mm] | LCF [mm] | OAL [mm] | DCONMS [mm] | SIG [deg] | LF [mm] | PL [mm] | ULDR | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 862.1-1000-160A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.00 | 16.00 | 18.00 | 65.00 | 3.00 | 137.00 | 64.82 | 0.20 | 16.00 | h6 | JS7 |
| 862.1-1100-176A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.10 | 17.60 | 19.50 | 65.00 | 3.00 | 137.00 | 64.80 | 0.22 | 16.00 | h6 | JS7 |
| 862.1-1200-192A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.20 | 19.20 | 21.00 | 65.00 | 3.00 | 137.00 | 64.78 | 0.24 | 16.00 | h6 | JS7 |
| 862.1-1300-208A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.30 | 20.80 | 23.00 | 65.00 | 3.00 | 137.00 | 64.76 | 0.26 | 16.00 | h6 | JS7 |
| 862.1-1400-224A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.40 | 22.40 | 24.50 | 65.00 | 3.00 | 137.00 | 64.75 | 0.28 | 16.00 | h6 | JS7 |
| 862.1-1500-240A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.50 | 24.00 | 27.00 | 65.00 | 3.00 | 137.00 | 64.73 | 0.30 | 16.00 | h6 | JS7 |
| 862.1-1600-256A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.60 | 25.60 | 28.50 | 65.00 | 3.00 | 137.00 | 64.71 | 0.32 | 16.00 | h6 | JS7 |
| 862.1-1700-272A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.70 | 27.20 | 30.00 | 65.00 | 3.00 | 137.00 | 64.69 | 0.33 | 16.00 | h6 | JS7 |
| 862.1-1800-288A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.80 | 28.80 | 32.00 | 65.00 | 3.00 | 137.00 | 64.67 | 0.35 | 16.00 | h6 | JS7 |
| 862.1-1900-304A1-GM | ● | ● | ● | ● | ● | ● | ○ | 1.90 | 30.40 | 33.50 | 65.00 | 3.00 | 137.00 | 64.65 | 0.37 | 16.00 | h6 | JS7 |
| 862.1-2000-320A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.00 | 32.00 | 35.00 | 65.00 | 3.00 | 137.00 | 64.64 | 0.39 | 16.00 | h6 | JS7 |
| 862.1-2100-336A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.10 | 33.60 | 36.50 | 82.00 | 3.00 | 137.00 | 81.62 | 0.41 | 16.00 | h6 | JS7 |
| 862.1-2200-352A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.20 | 35.20 | 38.00 | 82.00 | 3.00 | 137.00 | 81.60 | 0.43 | 16.00 | h6 | JS7 |
| 862.1-2300-368A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.30 | 36.80 | 40.00 | 82.00 | 3.00 | 137.00 | 81.58 | 0.45 | 16.00 | h6 | JS7 |
| 862.1-2400-384A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.40 | 38.40 | 41.50 | 82.00 | 3.00 | 137.00 | 81.56 | 0.47 | 16.00 | h6 | JS7 |
| 862.1-2500-400A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.50 | 40.00 | 43.00 | 82.00 | 3.00 | 137.00 | 81.55 | 0.49 | 16.00 | h6 | JS7 |
| 862.1-2600-416A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.60 | 41.60 | 44.50 | 82.00 | 3.00 | 137.00 | 81.53 | 0.51 | 16.00 | h6 | JS7 |
| 862.1-2700-432A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.70 | 43.20 | 46.00 | 82.00 | 3.00 | 137.00 | 81.51 | 0.53 | 16.00 | h6 | JS7 |
| 862.1-2800-448A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.80 | 44.80 | 48.00 | 82.00 | 3.00 | 137.00 | 81.49 | 0.55 | 16.00 | h6 | JS7 |
| 862.1-2900-464A1-GM | ● | ● | ● | ● | ● | ● | ○ | 2.90 | 46.40 | 49.50 | 82.00 | 3.00 | 137.00 | 81.47 | 0.57 | 16.00 | h6 | JS7 |
| 862.1-3000-480A1-GM | ● | ● | ● | ● | ● | ● | ○ | 3.00 | 48.00 | 52.00 | 82.00 | 3.00 | 137.00 | 81.45 | 0.59 | 16.00 | h6 | JS7 |
● = первый выбор, ○ = хороший выбор
