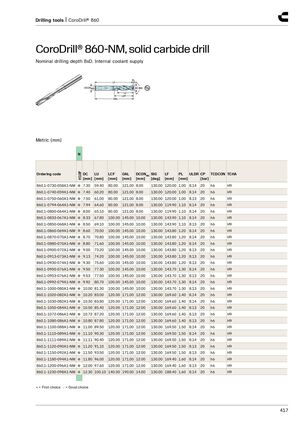

Инструменты для сверления | CoroDrill® 860
CoroDrill® 860-NM, сверло из твёрдого сплава
Номинальная глубина сверления 8xD. Внутренняя подача СОЖ.
Метрическая система (мм)
N H10F
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-0730-058A1-NM ● | 7.30 | 59.40 | 80.00 | 121.00 | 8.00 | 130.00 | 120.00 | 1.00 | 8.14 | 20 | h6 | H9 |
| 860.1-0740-059A1-NM ● | 7.40 | 60.20 | 80.00 | 121.00 | 8.00 | 130.00 | 120.00 | 1.00 | 8.14 | 20 | h6 | H9 |
| 860.1-0750-060A1-NM ● | 7.50 | 61.00 | 80.00 | 121.00 | 8.00 | 130.00 | 120.00 | 1.00 | 8.13 | 20 | h6 | H9 |
| 860.1-0794-064A1-NM ● | 7.94 | 64.60 | 80.00 | 121.00 | 8.00 | 130.00 | 119.90 | 1.10 | 8.14 | 20 | h6 | H9 |
| 860.1-0800-064A1-NM ● | 8.00 | 65.10 | 80.00 | 121.00 | 8.00 | 130.00 | 119.90 | 1.10 | 8.14 | 20 | h6 | H9 |
| 860.1-0833-067A1-NM ● | 8.33 | 67.80 | 100.00 | 145.00 | 10.00 | 130.00 | 143.90 | 1.10 | 8.14 | 20 | h6 | H9 |
| 860.1-0850-068A1-NM ● | 8.50 | 69.10 | 100.00 | 145.00 | 10.00 | 130.00 | 143.90 | 1.10 | 8.13 | 20 | h6 | H9 |
| 860.1-0860-069A1-NM ● | 8.60 | 70.00 | 100.00 | 145.00 | 10.00 | 130.00 | 143.80 | 1.20 | 8.14 | 20 | h6 | H9 |
| 860.1-0870-070A1-NM ● | 8.70 | 70.80 | 100.00 | 145.00 | 10.00 | 130.00 | 143.80 | 1.20 | 8.14 | 20 | h6 | H9 |
| 860.1-0880-070A1-NM ● | 8.80 | 71.60 | 100.00 | 145.00 | 10.00 | 130.00 | 143.80 | 1.20 | 8.14 | 20 | h6 | H9 |
| 860.1-0900-072A1-NM ● | 9.00 | 73.20 | 100.00 | 145.00 | 10.00 | 130.00 | 143.80 | 1.20 | 8.13 | 20 | h6 | H9 |
| 860.1-0913-073A1-NM ● | 9.13 | 74.20 | 100.00 | 145.00 | 10.00 | 130.00 | 143.80 | 1.20 | 8.13 | 20 | h6 | H9 |
| 860.1-0930-074A1-NM ● | 9.30 | 75.60 | 100.00 | 145.00 | 10.00 | 130.00 | 143.80 | 1.20 | 8.13 | 20 | h6 | H9 |
| 860.1-0950-076A1-NM ● | 9.50 | 77.30 | 100.00 | 145.00 | 10.00 | 130.00 | 143.70 | 1.30 | 8.14 | 20 | h6 | H9 |
| 860.1-0953-076A1-NM ● | 9.53 | 77.50 | 100.00 | 145.00 | 10.00 | 130.00 | 143.70 | 1.30 | 8.13 | 20 | h6 | H9 |
| 860.1-0992-079A1-NM ● | 9.92 | 80.70 | 100.00 | 145.00 | 10.00 | 130.00 | 143.70 | 1.30 | 8.14 | 20 | h6 | H9 |
| 860.1-1000-080A1-NM ● | 10.00 | 81.30 | 100.00 | 145.00 | 10.00 | 130.00 | 143.70 | 1.30 | 8.13 | 20 | h6 | H9 |
| 860.1-1020-082A1-NM ● | 10.20 | 83.00 | 120.00 | 171.00 | 12.00 | 130.00 | 169.60 | 1.40 | 8.14 | 20 | h6 | H9 |
| 860.1-1030-082A1-NM ● | 10.30 | 83.80 | 120.00 | 171.00 | 12.00 | 130.00 | 169.60 | 1.40 | 8.14 | 20 | h6 | H9 |
| 860.1-1050-084A1-NM ● | 10.50 | 85.40 | 120.00 | 171.00 | 12.00 | 130.00 | 169.60 | 1.40 | 8.13 | 20 | h6 | H9 |
| 860.1-1072-086A1-NM ● | 10.72 | 87.20 | 120.00 | 171.00 | 12.00 | 130.00 | 169.60 | 1.40 | 8.13 | 20 | h6 | H9 |
| 860.1-1080-086A1-NM ● | 10.80 | 87.80 | 120.00 | 171.00 | 12.00 | 130.00 | 169.60 | 1.40 | 8.13 | 20 | h6 | H9 |
| 860.1-1100-088A1-NM ● | 11.00 | 89.50 | 120.00 | 171.00 | 12.00 | 130.00 | 169.50 | 1.50 | 8.14 | 20 | h6 | H9 |
| 860.1-1110-089A1-NM ● | 11.10 | 90.30 | 120.00 | 171.00 | 12.00 | 130.00 | 169.50 | 1.50 | 8.14 | 20 | h6 | H9 |
| 860.1-1111-089A1-NM ● | 11.11 | 90.40 | 120.00 | 171.00 | 12.00 | 130.00 | 169.50 | 1.50 | 8.14 | 20 | h6 | H9 |
| 860.1-1120-090A1-NM ● | 11.20 | 91.10 | 120.00 | 171.00 | 12.00 | 130.00 | 169.50 | 1.50 | 8.13 | 20 | h6 | H9 |
| 860.1-1150-092A1-NM ● | 11.50 | 93.50 | 120.00 | 171.00 | 12.00 | 130.00 | 169.50 | 1.50 | 8.13 | 20 | h6 | H9 |
| 860.1-1180-094A1-NM ● | 11.80 | 96.00 | 120.00 | 171.00 | 12.00 | 130.00 | 169.40 | 1.60 | 8.14 | 20 | h6 | H9 |
| 860.1-1200-096A1-NM ● | 12.00 | 97.60 | 120.00 | 171.00 | 12.00 | 130.00 | 169.40 | 1.60 | 8.13 | 20 | h6 | H9 |
| 860.1-1230-098A1-NM ● | 12.30 | 100.10 | 140.00 | 190.00 | 14.00 | 130.00 | 188.40 | 1.60 | 8.14 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
