Инструменты для сверления | CoroDrill® 860

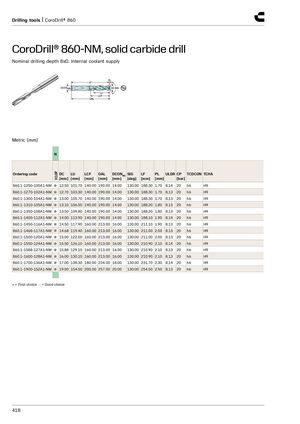

CoroDrill® 860-NM, сверло из твёрдого сплава
Номинальная глубина сверления 8xD. Внутренняя подача СОЖ.
Метрическая система (мм)
N H10F
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | CP [бар] | TCDCON | TCHA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860.1-1250-100A1-NM ● | 12.50 | 101.70 | 140.00 | 190.00 | 14.00 | 130.00 | 188.30 | 1.70 | 8.14 | 20 | h6 | H9 |
| 860.1-1270-102A1-NM ● | 12.70 | 103.30 | 140.00 | 190.00 | 14.00 | 130.00 | 188.30 | 1.70 | 8.13 | 20 | h6 | H9 |
| 860.1-1300-104A1-NM ● | 13.00 | 105.70 | 140.00 | 190.00 | 14.00 | 130.00 | 188.30 | 1.70 | 8.13 | 20 | h6 | H9 |
| 860.1-1310-105A1-NM ● | 13.10 | 106.50 | 140.00 | 190.00 | 14.00 | 130.00 | 188.20 | 1.80 | 8.13 | 20 | h6 | H9 |
| 860.1-1350-108A1-NM ● | 13.50 | 109.80 | 140.00 | 190.00 | 14.00 | 130.00 | 188.20 | 1.80 | 8.13 | 20 | h6 | H9 |
| 860.1-1400-112A1-NM ● | 14.00 | 113.90 | 140.00 | 190.00 | 14.00 | 130.00 | 188.10 | 1.90 | 8.14 | 20 | h6 | H9 |
| 860.1-1450-116A1-NM ● | 14.50 | 117.90 | 160.00 | 213.00 | 16.00 | 130.00 | 211.10 | 1.90 | 8.13 | 20 | h6 | H9 |
| 860.1-1468-117A1-NM ● | 14.68 | 119.40 | 160.00 | 213.00 | 16.00 | 130.00 | 211.00 | 2.00 | 8.13 | 20 | h6 | H9 |
| 860.1-1500-120A1-NM ● | 15.00 | 122.00 | 160.00 | 213.00 | 16.00 | 130.00 | 211.00 | 2.00 | 8.13 | 20 | h6 | H9 |
| 860.1-1550-124A1-NM ● | 15.50 | 126.10 | 160.00 | 213.00 | 16.00 | 130.00 | 210.90 | 2.10 | 8.14 | 20 | h6 | H9 |
| 860.1-1588-127A1-NM ● | 15.88 | 129.10 | 160.00 | 213.00 | 16.00 | 130.00 | 210.90 | 2.10 | 8.13 | 20 | h6 | H9 |
| 860.1-1600-128A1-NM ● | 16.00 | 130.10 | 160.00 | 213.00 | 16.00 | 130.00 | 210.90 | 2.10 | 8.13 | 20 | h6 | H9 |
| 860.1-1700-136A1-NM ● | 17.00 | 138.30 | 180.00 | 234.00 | 18.00 | 130.00 | 231.70 | 2.30 | 8.14 | 20 | h6 | H9 |
| 860.1-1900-152A1-NM ● | 19.00 | 154.50 | 200.00 | 257.00 | 20.00 | 130.00 | 254.50 | 2.50 | 8.13 | 20 | h6 | H9 |
● = Первый выбор ○ = Хороший выбор
