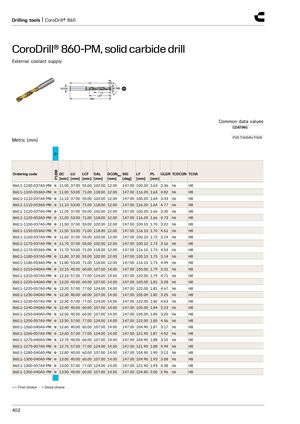

Каталог цельного осевого инструмента Sandvik 2026 - страница 406
Навигация
Дополнение к каталогам Sandvik 2020.2
Каталог Sandvik новые режущие инструменты 2020.1
Дополнение к каталогам Sandvik 2021.1
Каталог Sandvik цельный режущий инструмент 2020
Каталог Sandvik точение материалов высокой твердости- Selection guide
- Milling tools
- CoroMill® Dura
- CoroMill® Dura, solid carbide end mill for general machining
- CoroMill® Dura, solid carbide ball nose end mill for profiling
- CoroMill® Dura, solid carbide end mill for chamfer milling
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for heavy duty milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for high feed side milling
- CoroMill® Plura, solid carbide end mill for edging applications
- CoroMill® Plura, solid carbide end mill for stable multi-operations milling
- CoroMill® Plura, solid carbide end mill for finishing
- CoroMill® Plura, solid carbide end mill for large chip removal
- CoroMill® Plura, solid carbide end mill for high feed face milling
- CoroMill® Plura, solid carbide end mill for plunging
- CoroMill® Plura, solid carbide end mill for roughing with chip breaker
- CoroMill® Plura, solid carbide end mill for hard part milling
- CoroMill® Plura, solid carbide end mill for turn milling
- CoroMill® Plura, solid carbide end mill for micro-milling
- CoroMill® Plura, solid ceramic face mill
- CoroMill® Plura, solid ceramic end mill for high speed roughing
- CoroMill® Plura ball nose, solid carbide end mill for profiling
- CoroMill® Plura lollipop, solid carbide end mill for profiling
- CoroMill® Plura conical ball nose, solid carbide end mill for profiling
- CoroMill® Plura barrel, solid carbide end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for profiling
- CoroMill® Plura, solid carbide ball nose end mill for micro-milling
- CoroMill® 316
- CoroMill® 316, solid carbide head for heavy duty milling
- CoroMill® 316, solid carbide head for stable multi-operation milling
- CoroMill® 316, solid carbide head for high feed side milling
- CoroMill® 316, solid carbide head for finishing
- CoroMill® 316, solid carbide head for high feed face milling
- CoroMill® 316, solid carbide head for high chip load milling
- CoroMill® 316, solid carbide head for large chip removal
- CoroMill® 316, solid carbide head for roughing with chip breaker
- CoroMill® 316, solid carbide head for profiling
- CoroMill® 316, solid carbide head for chamfer milling
- CoroMill® 316, solid carbide head with quarter circle profile
- CoroMill® 316, brazed ceramic head for high speed roughing
- Drilling tools
- CoroDrill® Dura 462
- CoroDrill® Dura 462, solid carbide step and chamfer drill for multi-materials
- CoroDrill® Dura 462, solid carbide drill for multi-materials
- CoroDrill® Dura 462, solid carbide micro drill for multi-materials
- CoroDrill® 860
- CoroDrill® 860-MM, solid carbide drill for ISO-M
- CoroDrill® 860-SD, solid carbide drill for ISO-S
- CoroDrill® 860-GM, solid carbide step and chamfer drill
- CoroDrill® 860-GM, solid carbide drill
- CoroDrill® 860-PM, solid carbide step and chamfer drill
- CoroDrill® 860-PM, solid carbide drill
- CoroDrill® 860-SM, Solid carbide drill
- CoroDrill® 860-NM, solid carbide drill
- CoroDrill® 862
- CoroDrill® 862-GM, solid carbide micro drill
- CoroDrill® 862-GM, solid carbide micro drill for pilot holes
- Tapping tools
- CoroTap® 100
- CoroTap® 100, cutting tap with straight flutes
- CoroTap® 200
- CoroTap® 200, cutting tap with spiral point
- CoroTap® 300
- CoroTap® 300, cutting tap with spiral flutes
- CoroTap® 400
- CoroTap® 400, forming tap
- Reaming tools
- CoroReamer® 435
- CoroReamer™ 435 solid carbide reamer
- CoroReamer® 830
- CoroReamer™ 830 solid carbide head for reaming
- Cylindrical shank to CoroReamer™ 830 adaptor
- CoroReamer® 835
- CoroReamer™ 835 solid carbide reamer
- Thread milling tools
- CoroMill® Plura
- CoroMill® Plura, solid carbide end mill for thread milling
- CoroMill® 326
- CoroMill® 326, solid carbide end mill for chamfer milling
- CoroMill® 326, solid carbide end mill for thread milling
- General information
- Coolant supply information
- Cutting tool parameters according to ISO 13399
- Tool reconditioning
CoroDrill® 860-PM, твердосплавное сверло цельное
Наружная подача СОЖ
Общие данные
ПОКРЫТИЕ
PVD TiAlSiN+TiSiN
Метрическая система (мм)
P
P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ● | 860.1-1100-037A0-PM | 11.00 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.20 | 1.63 | 3.36 | h6 | H8 |
| ● | 860.1-1100-053A0-PM | 11.00 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.20 | 1.63 | 4.82 | h6 | H8 |
| ● | 860.1-1110-037A0-PM | 11.10 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.20 | 1.64 | 3.33 | h6 | H8 |
| ● | 860.1-1110-053A0-PM | 11.10 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.20 | 1.64 | 4.77 | h6 | H8 |
| ● | 860.1-1120-037A0-PM | 11.20 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.20 | 1.66 | 3.30 | h6 | H8 |
| ● | 860.1-1120-053A0-PM | 11.20 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.20 | 1.66 | 4.73 | h6 | H8 |
| ● | 860.1-1150-037A0-PM | 11.50 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.10 | 1.70 | 3.22 | h6 | H8 |
| ● | 860.1-1150-053A0-PM | 11.50 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.10 | 1.70 | 4.61 | h6 | H8 |
| ● | 860.1-1160-037A0-PM | 11.60 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.10 | 1.72 | 3.19 | h6 | H8 |
| ● | 860.1-1170-037A0-PM | 11.70 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.10 | 1.73 | 3.16 | h6 | H8 |
| ● | 860.1-1170-053A0-PM | 11.70 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.10 | 1.73 | 4.53 | h6 | H8 |
| ● | 860.1-1180-037A0-PM | 11.80 | 37.00 | 55.00 | 102.00 | 12.00 | 147.00 | 100.10 | 1.75 | 3.14 | h6 | H8 |
| ● | 860.1-1180-053A0-PM | 11.80 | 53.00 | 71.00 | 118.00 | 12.00 | 147.00 | 116.10 | 1.75 | 4.49 | h6 | H8 |
| ● | 860.1-1210-040A0-PM | 12.10 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 105.00 | 1.79 | 3.31 | h6 | H8 |
| ● | 860.1-1210-057A0-PM | 12.10 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 122.00 | 1.79 | 4.71 | h6 | H8 |
| ● | 860.1-1220-040A0-PM | 12.20 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 105.00 | 1.81 | 3.28 | h6 | H8 |
| ● | 860.1-1220-057A0-PM | 12.20 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 122.00 | 1.81 | 4.67 | h6 | H8 |
| ● | 860.1-1230-040A0-PM | 12.30 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 105.00 | 1.82 | 3.25 | h6 | H8 |
| ● | 860.1-1230-057A0-PM | 12.30 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 122.00 | 1.82 | 4.63 | h6 | H8 |
| ● | 860.1-1240-040A0-PM | 12.40 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 105.00 | 1.84 | 3.23 | h6 | H8 |
| ● | 860.1-1250-040A0-PM | 12.50 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 105.00 | 1.85 | 3.20 | h6 | H8 |
| ● | 860.1-1250-057A0-PM | 12.50 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 122.00 | 1.85 | 4.56 | h6 | H8 |
| ● | 860.1-1260-040A0-PM | 12.60 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.90 | 1.87 | 3.17 | h6 | H8 |
| ● | 860.1-1260-057A0-PM | 12.60 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.90 | 1.87 | 4.52 | h6 | H8 |
| ● | 860.1-1270-040A0-PM | 12.70 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.90 | 1.88 | 3.15 | h6 | H8 |
| ● | 860.1-1270-057A0-PM | 12.70 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.90 | 1.88 | 4.49 | h6 | H8 |
| ● | 860.1-1280-040A0-PM | 12.80 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.90 | 1.90 | 3.13 | h6 | H8 |
| ● | 860.1-1300-040A0-PM | 13.00 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.90 | 1.93 | 3.08 | h6 | H8 |
| ● | 860.1-1300-057A0-PM | 13.00 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.90 | 1.93 | 4.38 | h6 | H8 |
| ● | 860.1-1350-040A0-PM | 13.50 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.80 | 2.00 | 2.96 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
