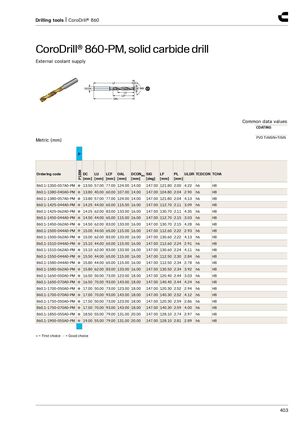

CoroDrill® 860-PM, твердосплавное сверло цельное
Наружная подача СОЖ
Общие данные
ПОКРЫТИЕ
PVD TiAlSiN+TiSiN
Метрическая система (мм)
P
P1BM
| Код заказа | DC [мм] | LU [мм] | LCF [мм] | OAL [мм] | DCONMS [мм] | SIG [град] | LF [мм] | PL [мм] | ULDR | TCDCON | TCHA | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ● | 860.1-1350-057A0-PM | 13.50 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.80 | 2.00 | 4.22 | h6 | H8 |
| ● | 860.1-1380-040A0-PM | 13.80 | 40.00 | 60.00 | 107.00 | 14.00 | 147.00 | 104.80 | 2.04 | 2.90 | h6 | H8 |
| ● | 860.1-1380-057A0-PM | 13.80 | 57.00 | 77.00 | 124.00 | 14.00 | 147.00 | 121.80 | 2.04 | 4.13 | h6 | H8 |
| ● | 860.1-1425-044A0-PM | 14.25 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.70 | 2.11 | 3.09 | h6 | H8 |
| ● | 860.1-1425-062A0-PM | 14.25 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.70 | 2.11 | 4.35 | h6 | H8 |
| ● | 860.1-1450-044A0-PM | 14.50 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.70 | 2.15 | 3.03 | h6 | H8 |
| ● | 860.1-1450-062A0-PM | 14.50 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.70 | 2.15 | 4.28 | h6 | H8 |
| ● | 860.1-1500-044A0-PM | 15.00 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.60 | 2.22 | 2.93 | h6 | H8 |
| ● | 860.1-1500-062A0-PM | 15.00 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.60 | 2.22 | 4.13 | h6 | H8 |
| ● | 860.1-1510-044A0-PM | 15.10 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.60 | 2.24 | 2.91 | h6 | H8 |
| ● | 860.1-1510-062A0-PM | 15.10 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.60 | 2.24 | 4.11 | h6 | H8 |
| ● | 860.1-1550-044A0-PM | 15.50 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.50 | 2.30 | 2.84 | h6 | H8 |
| ● | 860.1-1580-044A0-PM | 15.80 | 44.00 | 65.00 | 115.00 | 16.00 | 147.00 | 112.50 | 2.34 | 2.78 | h6 | H8 |
| ● | 860.1-1580-062A0-PM | 15.80 | 62.00 | 83.00 | 133.00 | 16.00 | 147.00 | 130.50 | 2.34 | 3.92 | h6 | H8 |
| ● | 860.1-1650-050A0-PM | 16.50 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.40 | 2.44 | 3.03 | h6 | H8 |
| ● | 860.1-1650-070A0-PM | 16.50 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.40 | 2.44 | 4.24 | h6 | H8 |
| ● | 860.1-1700-050A0-PM | 17.00 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.30 | 2.52 | 2.94 | h6 | H8 |
| ● | 860.1-1700-070A0-PM | 17.00 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.30 | 2.52 | 4.12 | h6 | H8 |
| ● | 860.1-1750-050A0-PM | 17.50 | 50.00 | 73.00 | 123.00 | 18.00 | 147.00 | 120.30 | 2.59 | 2.86 | h6 | H8 |
| ● | 860.1-1750-070A0-PM | 17.50 | 70.00 | 93.00 | 143.00 | 18.00 | 147.00 | 140.30 | 2.59 | 4.00 | h6 | H8 |
| ● | 860.1-1850-055A0-PM | 18.50 | 55.00 | 79.00 | 131.00 | 20.00 | 147.00 | 128.10 | 2.74 | 2.97 | h6 | H8 |
| ● | 860.1-1900-055A0-PM | 19.00 | 55.00 | 79.00 | 131.00 | 20.00 | 147.00 | 128.10 | 2.81 | 2.89 | h6 | H8 |
● = Первый выбор ○ = Хороший выбор
